Mark Pads IST138178 #12

Closed
opened 5 years ago by jebba · 0 comments
jebba commented 5 years ago
Owner

ProtoExpress IST138178:

"We need you to advise if the marked pad of components mentioned below is cathode:
D27 (Line Item# 22) [MPN: LH R974-LP-1]
D8,D2,D26,D4,D5,D6,D7,D9,D10,D11,D12,D13 (Line Item# 24) [MPN: LG R971-KN-1]"

Replied:

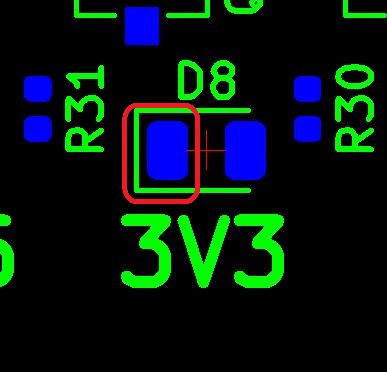

D8,D2,D26,D4,D5,D6,D7,D9,D10,D11,D12,D13 cathode is on left.

D27 Cathode is on the left, as circled.

ProtoExpress IST138178: "We need you to advise if the marked pad of components mentioned below is cathode: D27 (Line Item# 22) [MPN: LH R974-LP-1] D8,D2,D26,D4,D5,D6,D7,D9,D10,D11,D12,D13 (Line Item# 24) [MPN: LG R971-KN-1]" Replied: D8,D2,D26,D4,D5,D6,D7,D9,D10,D11,D12,D13 cathode is on left. D27 Cathode is on the left, as circled.
24 KiB
37 KiB
jebba added the Manufacturing label 5 years ago
jebba changed title from Mark Pads to Mark Pads IST138178 5 years ago
jebba closed this issue 5 years ago
jebba added this to the 1.0 milestone 5 years ago
jebba self-assigned this 5 years ago
