Pin 1 Marking IST138179 #13

Closed
opened 5 years ago by jebba · 2 comments
jebba commented 5 years ago
Owner

ProtoExpress IST138179:

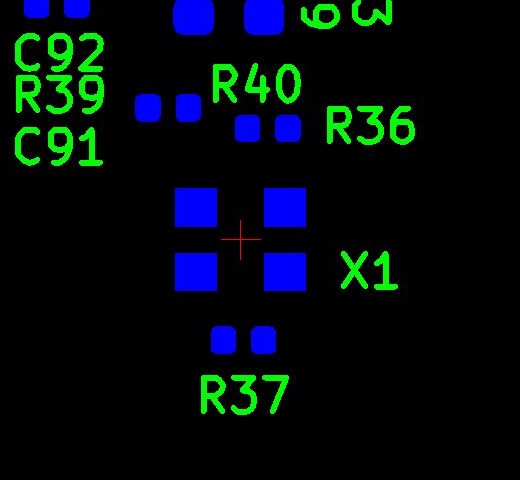

"We need you to advise for the PIN1 marking for below mentioned components as it is missing in silkscreen layer.
X1 (Line Item# 95) [MPN: ASE-12.000MHZ-LC-T]"

ProtoExpress IST138179: "We need you to advise for the PIN1 marking for below mentioned components as it is missing in silkscreen layer. X1 (Line Item# 95) [MPN: ASE-12.000MHZ-LC-T]"
42 KiB
jebba commented 5 years ago
Poster
Owner

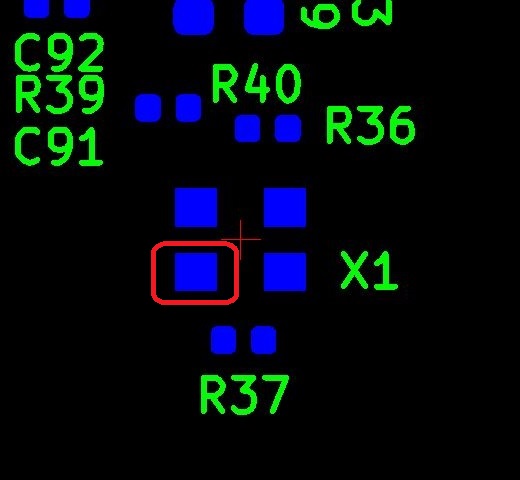

X1 Pin 1 is bottom left in your image.

X1 Pin 1 is bottom left in your image.
jebba commented 5 years ago
Poster
Owner
There is no content yet.
44 KiB
jebba added the Manufacturing label 5 years ago
jebba changed title from Pin 1 Marking to Pin 1 Marking IST138179 5 years ago
jebba closed this issue 5 years ago
jebba added this to the 1.0 milestone 5 years ago
jebba self-assigned this 5 years ago
