Stubs IST137318 #16

Closed
opened 5 years ago by jebba · 0 comments
jebba commented 5 years ago
Owner

ProtoExpress IST137318:

"While performing DRC on your order, we observed stubs(Un-terminated traces) on inner layer4 at 5 locations. Please confirm can we proceed as is or else advise. Screen shot attached for your reference"

ProtoExpress IST137318: "While performing DRC on your order, we observed stubs(Un-terminated traces) on inner layer4 at 5 locations. Please confirm can we proceed as is or else advise. Screen shot attached for your reference"

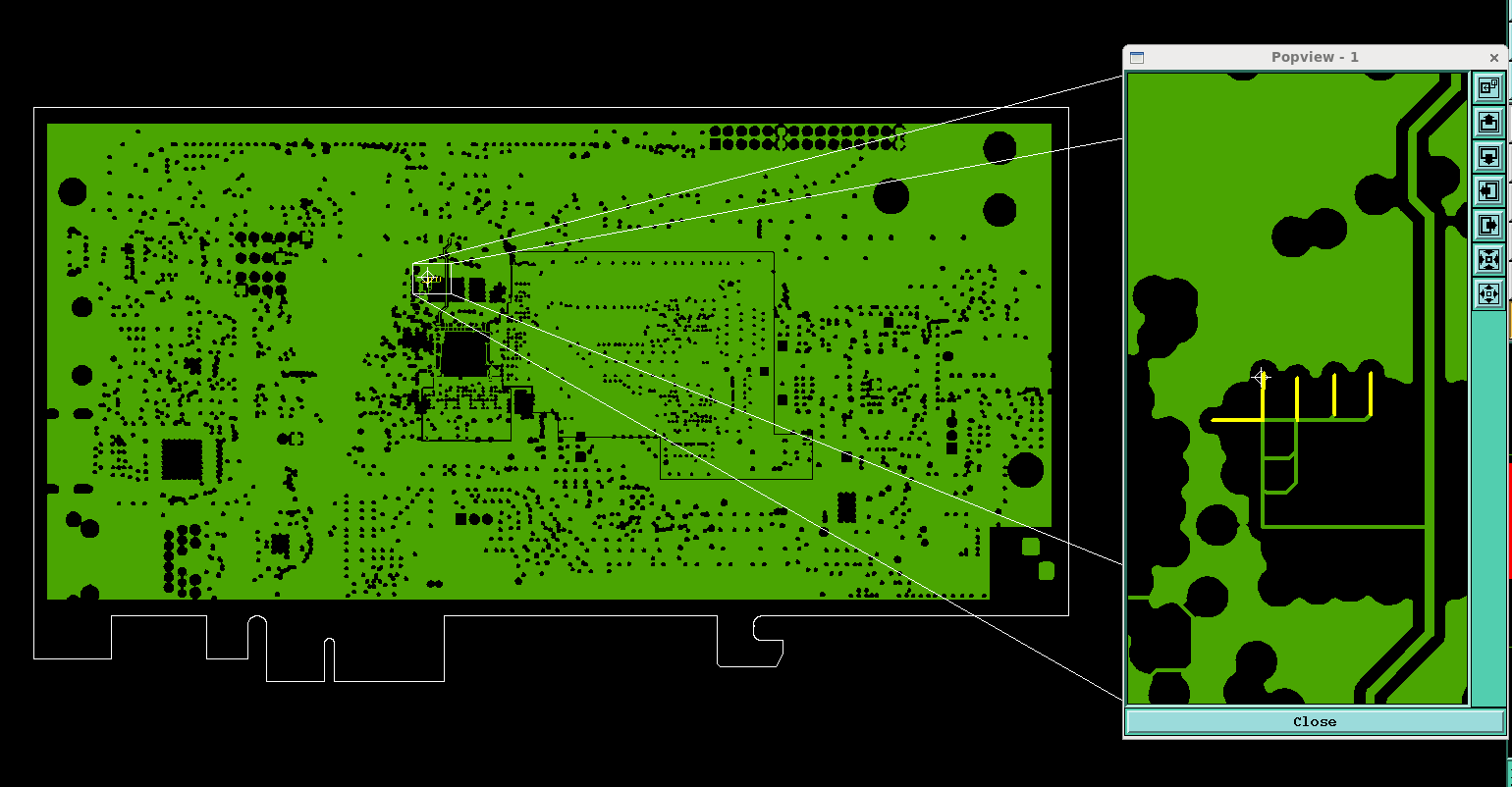

160832_stubs on layer4.png
47 KiB
jebba added the Manufacturing label 5 years ago
jebba changed title from Stubs to Stubs IST137318 5 years ago
jebba closed this issue 5 years ago
jebba added this to the 1.0 milestone 5 years ago
jebba self-assigned this 5 years ago
