partial mask opening IST137045 #4

Closed
opened 5 years ago by jebba · 1 comments
jebba commented 5 years ago
Owner

From Protoexpress:

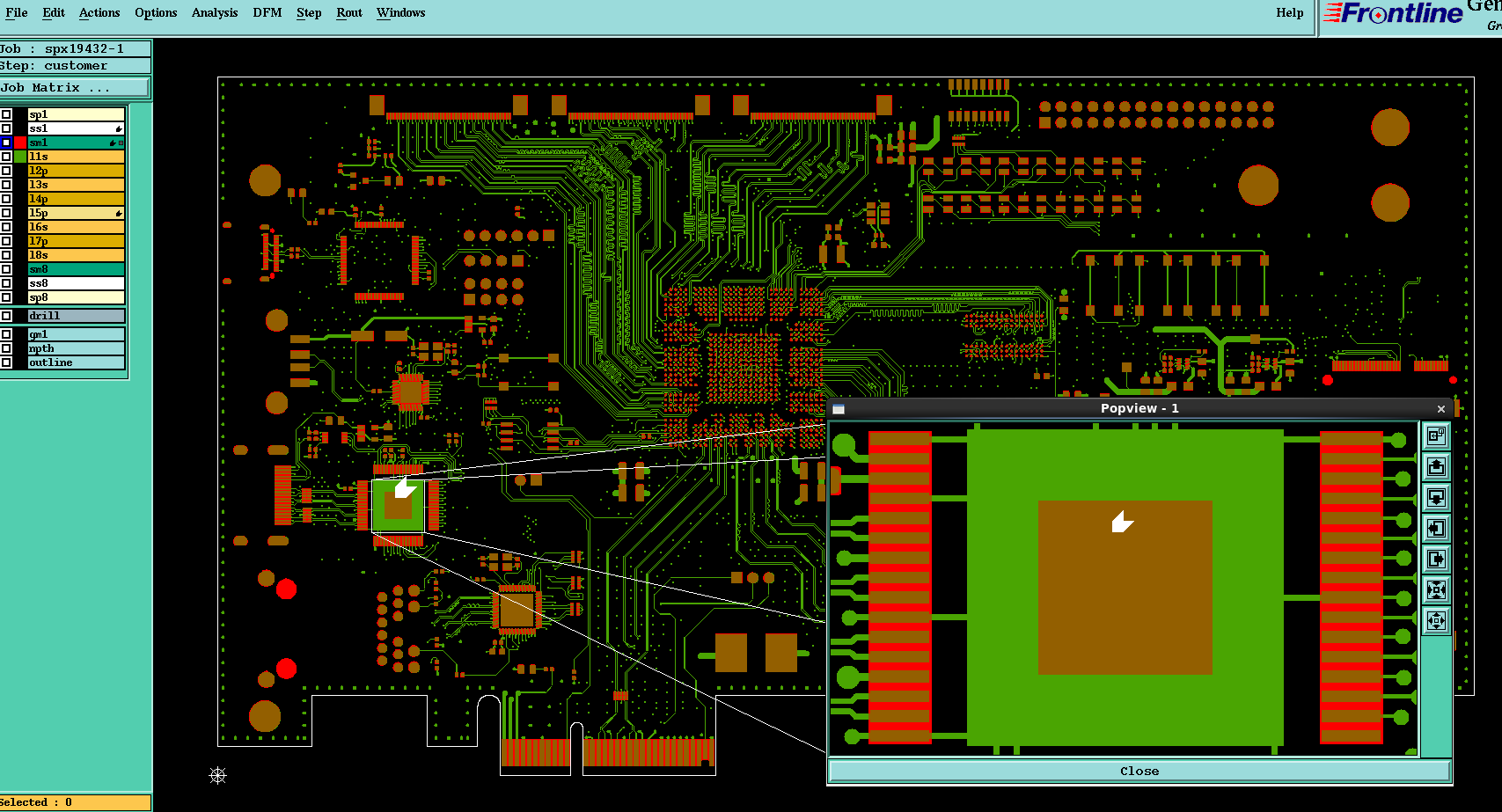

"While DFM validation, we observed partial mask opening for rectangular pad at one location in top mask layer. Find Enclosed snap shot for your quick reference. Can we provide complete mask opening at this location(Pad size+4Mils) OR would you like us to proceed as is? Please confirm."

From Protoexpress: "While DFM validation, we observed partial mask opening for rectangular pad at one location in top mask layer. Find Enclosed snap shot for your quick reference. Can we provide complete mask opening at this location(Pad size+4Mils) OR would you like us to proceed as is? Please confirm."
top maks.png
85 KiB
jebba commented 5 years ago
Poster
Owner

IST137045

IST137045
jebba added the Manufacturing label 5 years ago
jebba changed title from partial mask opening to partial mask opening IST137045 5 years ago
jebba closed this issue 5 years ago
jebba added this to the 1.0 milestone 5 years ago
jebba self-assigned this 5 years ago
