un-terminated traces (stubs) IST137053 #5

Closed
opened 5 years ago by jebba · 2 comments
jebba commented 5 years ago
Owner

ProtoExprtess IST137053:

"While performing DFM validation on your order, we observed few un-terminated traces (stubs) in top and bottom layer. Please confirm whether this is by design or else advise. Attached snap shot for your quick reference."

ProtoExprtess IST137053: "While performing DFM validation on your order, we observed few un-terminated traces (stubs) in top and bottom layer. Please confirm whether this is by design or else advise. Attached snap shot for your quick reference."
jebba commented 5 years ago
Poster
Owner
There is no content yet.

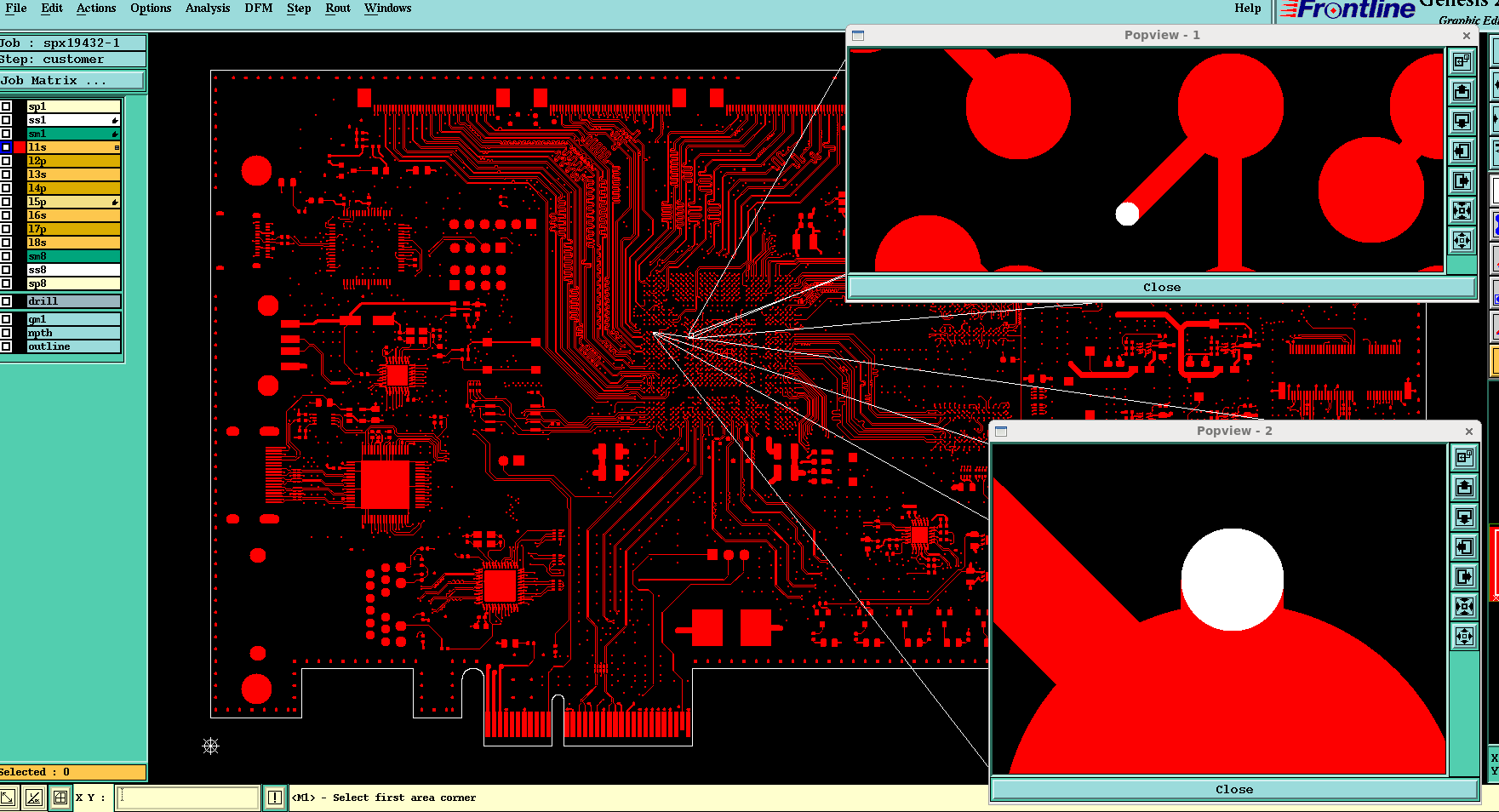

bottom layer.png
76 KiB
jebba commented 5 years ago
Poster
Owner
There is no content yet.

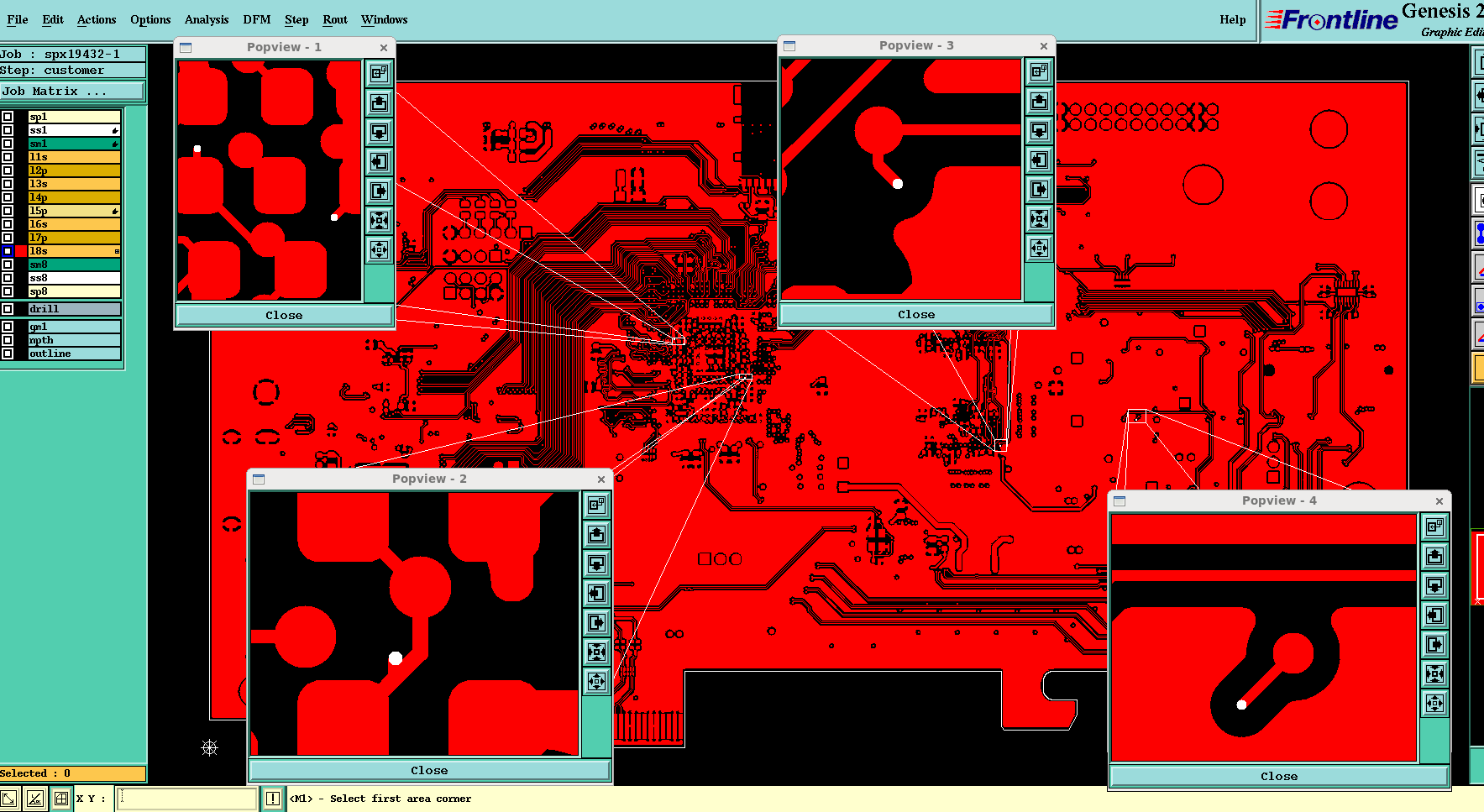

top layer.png
79 KiB
jebba added the Manufacturing label 5 years ago
jebba changed title from un-terminated traces (stubs) to un-terminated traces (stubs) IST137053 5 years ago
jebba closed this issue 5 years ago
jebba added this to the 1.0 milestone 5 years ago
jebba self-assigned this 5 years ago
