Missing 3D Models in KiCad 6 #56

Open
opened 2 years ago by jebba · 11 comments
jebba commented 2 years ago
Owner

KiCad 6 has a nice plugin that lists missing 3D modules. The files all look like older upstream files that probably aren't libre, hence not included. Did we make libre versions of any of these?

This is what it finds when opening the Trellisboard:

### Missing 3D models - created on 2021-12-26 17:54
### Printed by checking_3D_models plugin
Board file: /home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/ecp5_mainboard/ecp5_mainboard.kicad_pcb
3D missing models written to:
/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/ecp5_mainboard/ecp5_mainboard_missing3Dmodels.txt
-------
('SW6', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl')
('SW5', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl')
('SW4', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl')
('SW3', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl')
('SW2', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl')
('J1', '/usr/share/kicad/3dmodels/Connector_BarrelJack.3dshapes/BarrelJack_Horizontal.wrl')
('J7', '/home/david/3d/c-4-1734839-0-c-3d.stp')
('J6', '/home/david/3d/c-4-1734839-0-c-3d.stp')
('J5', '/home/david/3d/c-4-1734839-0-c-3d.stp')
('U7', '/home/david/3d/vson8.stp')
('U8', '/home/david/3d/vson8.stp')
('U9', '/home/david/3d/vson8.stp')
('U10', '/home/david/3d/vson8.stp')
('DA5', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl')
('DA5', '/home/david/3d/User Library-TPD4E02B04.STEP')
('DA4', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl')
('DA4', '/home/david/3d/User Library-TPD4E02B04.STEP')
('DA6', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl')
('DA6', '/home/david/3d/User Library-TPD4E02B04.STEP')
('DA2', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl')
('DA2', '/home/david/3d/User Library-TPD4E02B04.STEP')
('L1', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Coilcraft_XAL5030.wrl')
('L6', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl')
('L3', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl')
('L5', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl')
('L4', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl')
('D20', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D25', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D24', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D23', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D14', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D15', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D16', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D21', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D22', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D19', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D17', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('D18', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp')
('DA1', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl')
('DA1', '/home/david/3d/User Library-TPD4E02B04.STEP')
('J2', '/usr/share/kicad/3dmodels/Connector_USB.3dshapes/USB_C_Receptacle_Amphenol_12401610E4-2A.wrl')
('J13', '/usr/share/kicad/3dmodels/Connector_Card.3dshapes/microSD_HC_Hirose_DM3AT-SF-PEJM5.wrl')
('DA3', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl')
('DA3', '/home/david/3d/User Library-TPD4E02B04.STEP')
('X1', '/usr/share/kicad/3dmodels/Oscillator.3dshapes/Oscillator_SMD_EuroQuartz_XO32-4Pin_3.2x2.5mm.wrl')
-------
NUM of 3D missing models:45
checked extensions ['.stp', '.step', '.stpZ']
KiCad 6 has a nice plugin that lists missing 3D modules. The files all look like older upstream files that probably aren't libre, hence not included. Did we make libre versions of any of these? This is what it finds when opening the Trellisboard: ``` ### Missing 3D models - created on 2021-12-26 17:54 ### Printed by checking_3D_models plugin Board file: /home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/ecp5_mainboard/ecp5_mainboard.kicad_pcb 3D missing models written to: /home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/ecp5_mainboard/ecp5_mainboard_missing3Dmodels.txt ------- ('SW6', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl') ('SW5', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl') ('SW4', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl') ('SW3', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl') ('SW2', '/usr/share/kicad/3dmodels/Button_Switch_SMD.3dshapes/SW_SPST_B3S-1000.wrl') ('J1', '/usr/share/kicad/3dmodels/Connector_BarrelJack.3dshapes/BarrelJack_Horizontal.wrl') ('J7', '/home/david/3d/c-4-1734839-0-c-3d.stp') ('J6', '/home/david/3d/c-4-1734839-0-c-3d.stp') ('J5', '/home/david/3d/c-4-1734839-0-c-3d.stp') ('U7', '/home/david/3d/vson8.stp') ('U8', '/home/david/3d/vson8.stp') ('U9', '/home/david/3d/vson8.stp') ('U10', '/home/david/3d/vson8.stp') ('DA5', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl') ('DA5', '/home/david/3d/User Library-TPD4E02B04.STEP') ('DA4', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl') ('DA4', '/home/david/3d/User Library-TPD4E02B04.STEP') ('DA6', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl') ('DA6', '/home/david/3d/User Library-TPD4E02B04.STEP') ('DA2', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl') ('DA2', '/home/david/3d/User Library-TPD4E02B04.STEP') ('L1', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Coilcraft_XAL5030.wrl') ('L6', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl') ('L3', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl') ('L5', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl') ('L4', '/usr/share/kicad/3dmodels/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl') ('D20', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D25', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D24', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D23', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D14', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D15', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D16', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D21', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D22', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D19', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D17', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('D18', '/home/david/3d/STEP-WL-SBTW-3528-rev1(2.stp') ('DA1', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl') ('DA1', '/home/david/3d/User Library-TPD4E02B04.STEP') ('J2', '/usr/share/kicad/3dmodels/Connector_USB.3dshapes/USB_C_Receptacle_Amphenol_12401610E4-2A.wrl') ('J13', '/usr/share/kicad/3dmodels/Connector_Card.3dshapes/microSD_HC_Hirose_DM3AT-SF-PEJM5.wrl') ('DA3', '/home/jebba/devel/forksand/fs-6-TrellisBoard/hardware/3d/UDFN10.wrl') ('DA3', '/home/david/3d/User Library-TPD4E02B04.STEP') ('X1', '/usr/share/kicad/3dmodels/Oscillator.3dshapes/Oscillator_SMD_EuroQuartz_XO32-4Pin_3.2x2.5mm.wrl') ------- NUM of 3D missing models:45 checked extensions ['.stp', '.step', '.stpZ'] ```
jebba commented 2 years ago
Poster
Owner

From the source archive, moved here:

fs-TrellisBoard$ cat Missing3D
${KICAD6_3DMODEL_DIR}/Inductor_SMD.3dshapes/L_Coilcraft_XAL60xx_6.36x6.56mm.wrl
${KICAD6_3DMODEL_DIR}/Inductor_SMD.3dshapes/L_Coilcraft_XAL5030.wrl
${KICAD6_3DMODEL_DIR}/Connector_RJ.3dshapes/RJ45_Pulse_JK0654219NL_Horizontal.wrl
${KICAD6_3DMODEL_DIR}/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl
${KICAD6_3DMODEL_DIR}/Connector_BarrelJack.3dshapes/BarrelJack_Horizontal.wrl
${KICAD6_3DMODEL_DIR}/Oscillator.3dshapes/Oscillator_SMD_IDT_JS6-6_5.0x3.2mm_P1.27mm.wrl
${KICAD6_3DMODEL_DIR}/LED_SMD.3dshapes/LED_RGB_Wuerth-PLCC4_3.2x2.8mm_150141M173100.wrl
${KICAD6_3DMODEL_DIR}/Connector_FFC-FPC.3dshapes/TE_4-1734839-0_1x40-1MP_P0.5mm_Horizontal.wrl
${KICAD6_3DMODEL_DIR}/Connector_USB.3dshapes/USB_C_Receptacle_Amphenol_12401610E4-2A.wrl
${KICAD6_3DMODEL_DIR}/Package_BGA.3dshapes/Lattice_caBGA-756_27.0x27.0mm_Layout32x32_P0.8mm.wrl
${KICAD6_3DMODEL_DIR}/Connector_Card.3dshapes/microSD_HC_Hirose_DM3AT-SF-PEJM5.wrl

Custom Parts:292303-7
Custom Parts:Molex_HDMI_A_47151-0001
Custom Parts:FuseHolder_SMD_Shurter_0031.7701.11

Custom Parts:2199230-4
https://gitlab.com/kicad/libraries/kicad-footprints/-/merge_requests/1404
https://gitlab.com/kicad/libraries/kicad-footprints/-/merge_requests/1929 (mine, closed, duplicate)

Custom Parts:9774025151R
From the source archive, moved here: ``` fs-TrellisBoard$ cat Missing3D ${KICAD6_3DMODEL_DIR}/Inductor_SMD.3dshapes/L_Coilcraft_XAL60xx_6.36x6.56mm.wrl ${KICAD6_3DMODEL_DIR}/Inductor_SMD.3dshapes/L_Coilcraft_XAL5030.wrl ${KICAD6_3DMODEL_DIR}/Connector_RJ.3dshapes/RJ45_Pulse_JK0654219NL_Horizontal.wrl ${KICAD6_3DMODEL_DIR}/Inductor_SMD.3dshapes/L_Vishay_IHLP-1212.wrl ${KICAD6_3DMODEL_DIR}/Connector_BarrelJack.3dshapes/BarrelJack_Horizontal.wrl ${KICAD6_3DMODEL_DIR}/Oscillator.3dshapes/Oscillator_SMD_IDT_JS6-6_5.0x3.2mm_P1.27mm.wrl ${KICAD6_3DMODEL_DIR}/LED_SMD.3dshapes/LED_RGB_Wuerth-PLCC4_3.2x2.8mm_150141M173100.wrl ${KICAD6_3DMODEL_DIR}/Connector_FFC-FPC.3dshapes/TE_4-1734839-0_1x40-1MP_P0.5mm_Horizontal.wrl ${KICAD6_3DMODEL_DIR}/Connector_USB.3dshapes/USB_C_Receptacle_Amphenol_12401610E4-2A.wrl ${KICAD6_3DMODEL_DIR}/Package_BGA.3dshapes/Lattice_caBGA-756_27.0x27.0mm_Layout32x32_P0.8mm.wrl ${KICAD6_3DMODEL_DIR}/Connector_Card.3dshapes/microSD_HC_Hirose_DM3AT-SF-PEJM5.wrl Custom Parts:292303-7 Custom Parts:Molex_HDMI_A_47151-0001 Custom Parts:FuseHolder_SMD_Shurter_0031.7701.11 Custom Parts:2199230-4 https://gitlab.com/kicad/libraries/kicad-footprints/-/merge_requests/1404 https://gitlab.com/kicad/libraries/kicad-footprints/-/merge_requests/1929 (mine, closed, duplicate) Custom Parts:9774025151R ```
ivan_o commented 2 years ago
Collaborator

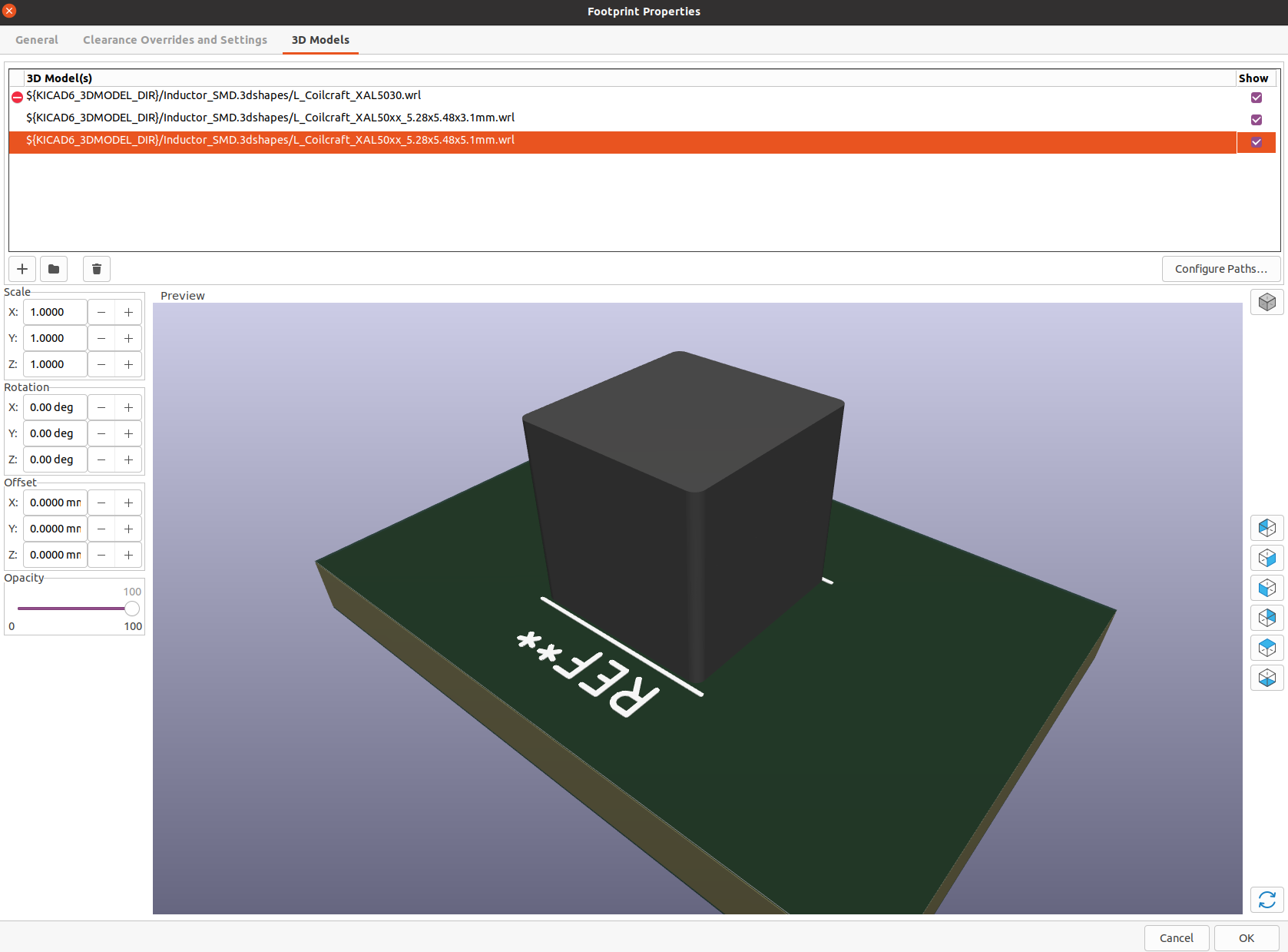

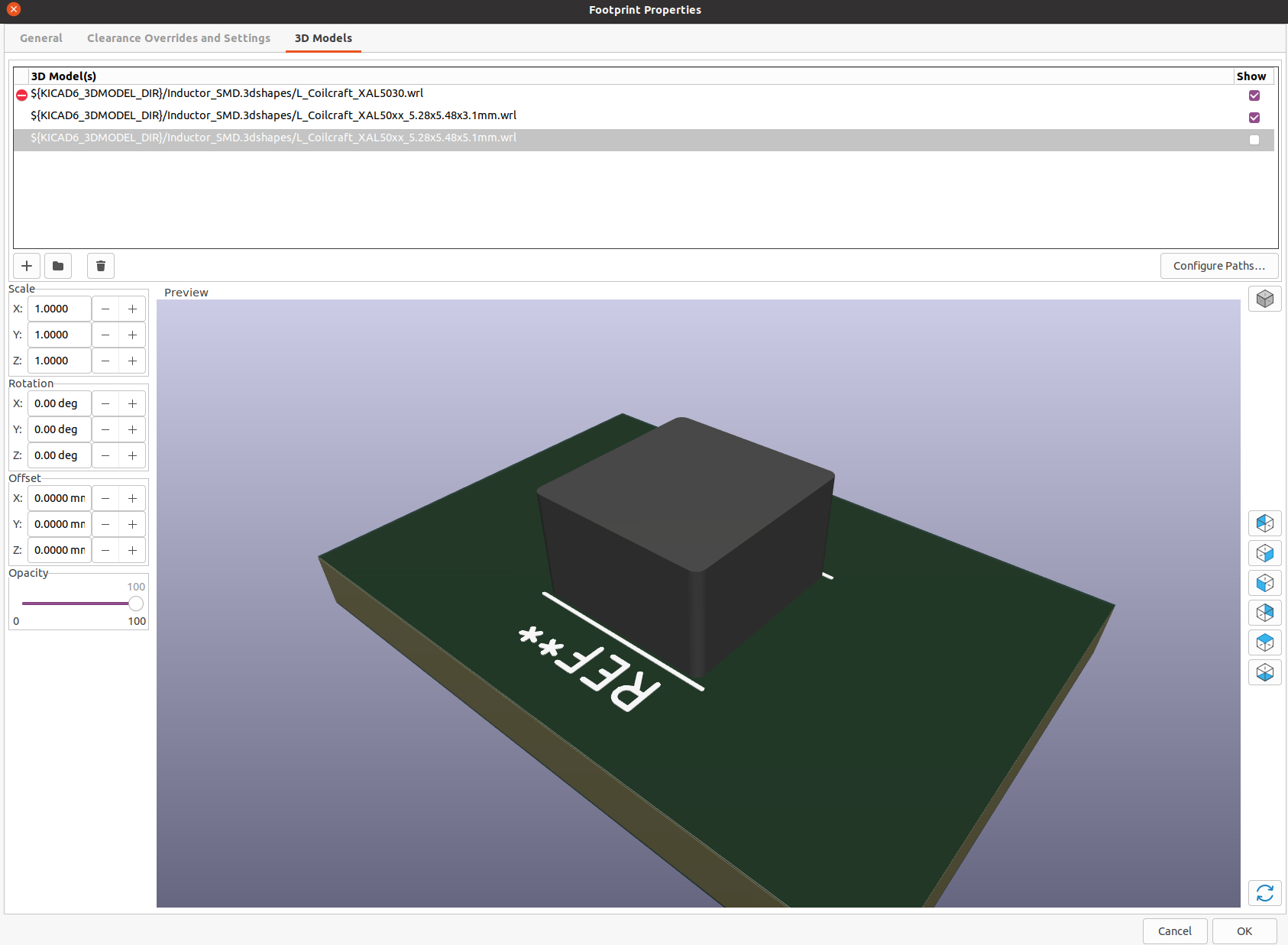

Adding Coilcraft inductors XAL50xx and XAL60xx series

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/781

Adding Coilcraft inductors XAL50xx and XAL60xx series https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/781
142 KiB
144 KiB
ivan_o commented 2 years ago
Collaborator

Adding Coilcraft inductors XAL60xx and XAL50xx series

https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/9

Adding Coilcraft inductors XAL60xx and XAL50xx series https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/9
ivan_o commented 2 years ago
Collaborator

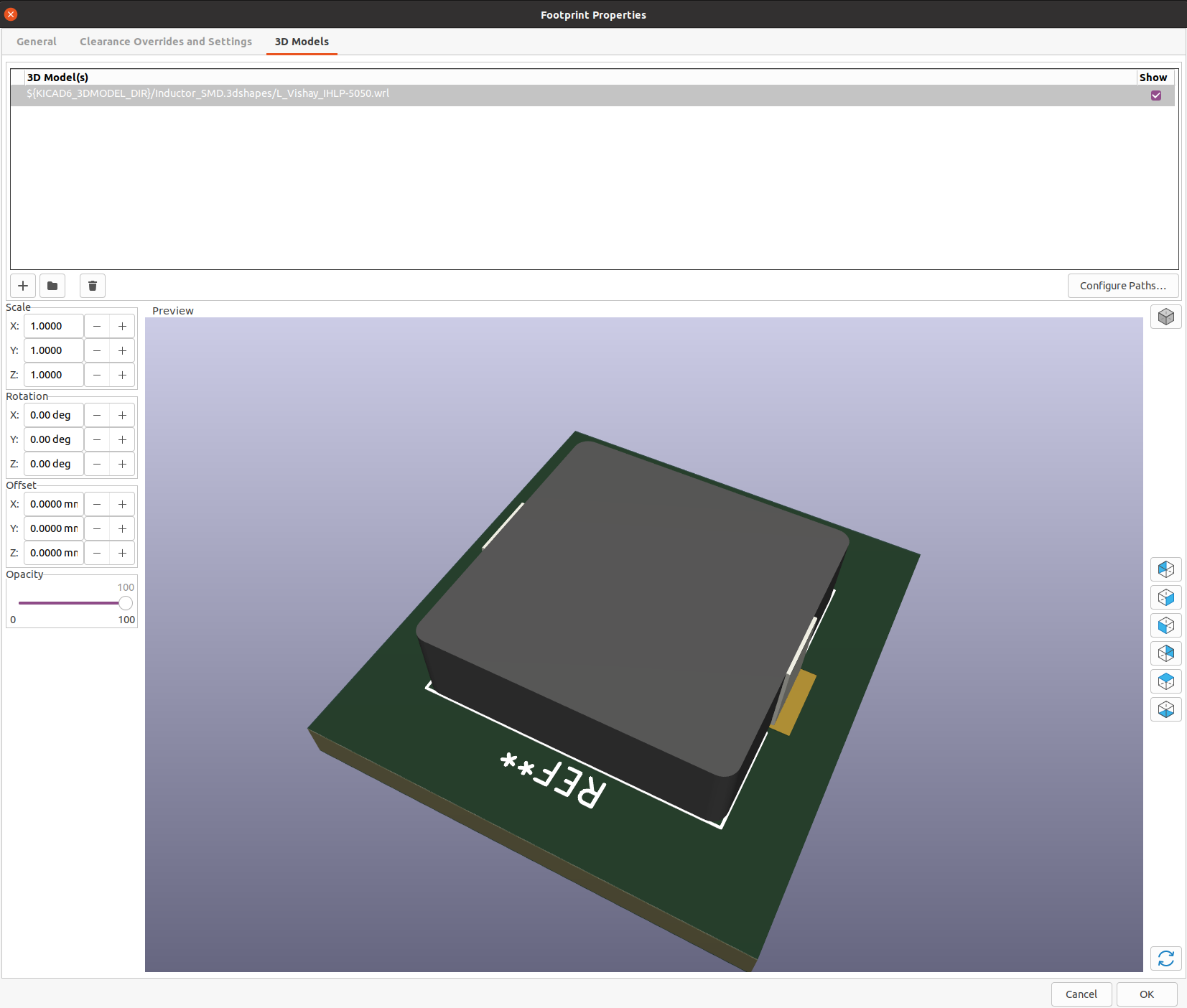

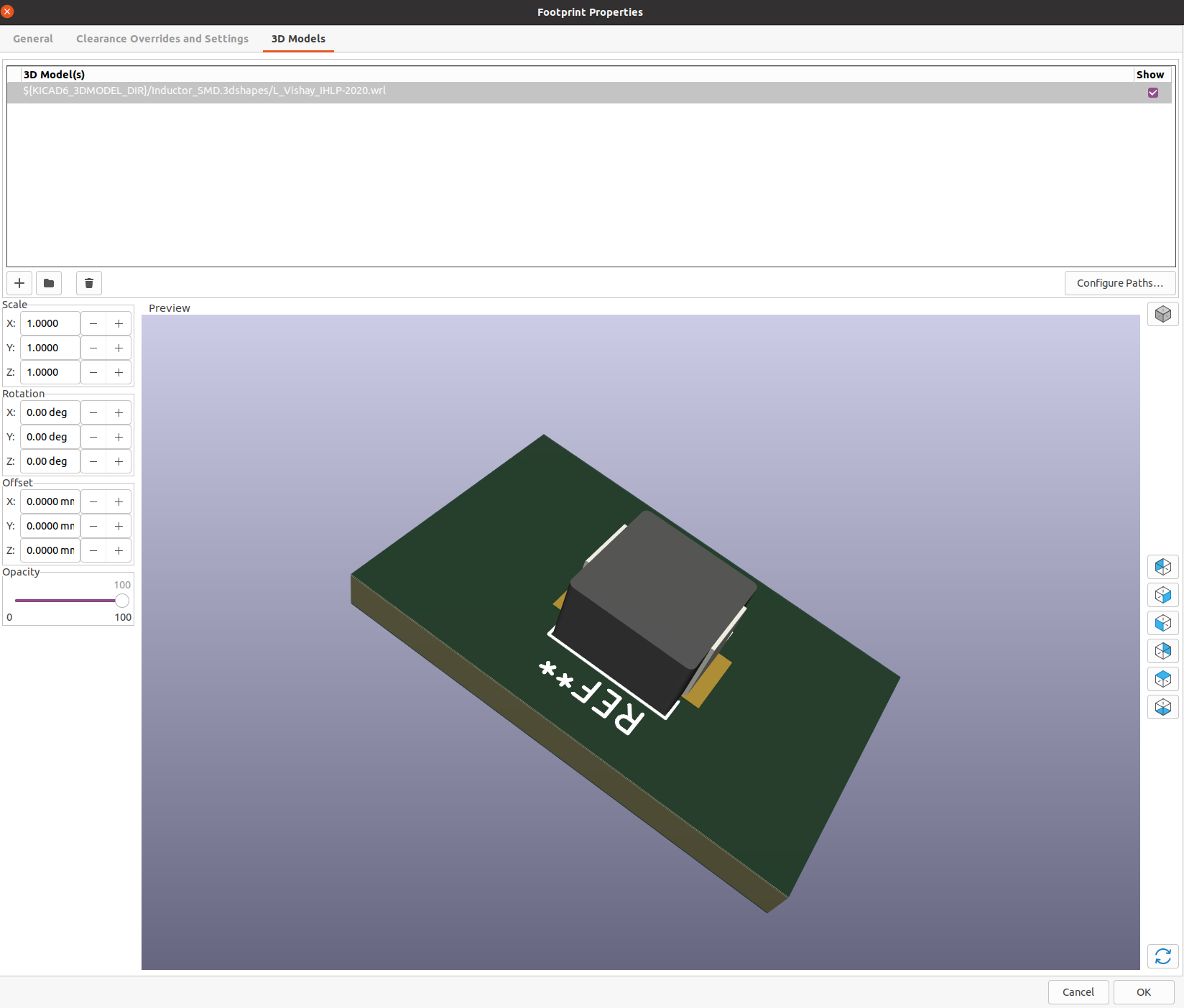

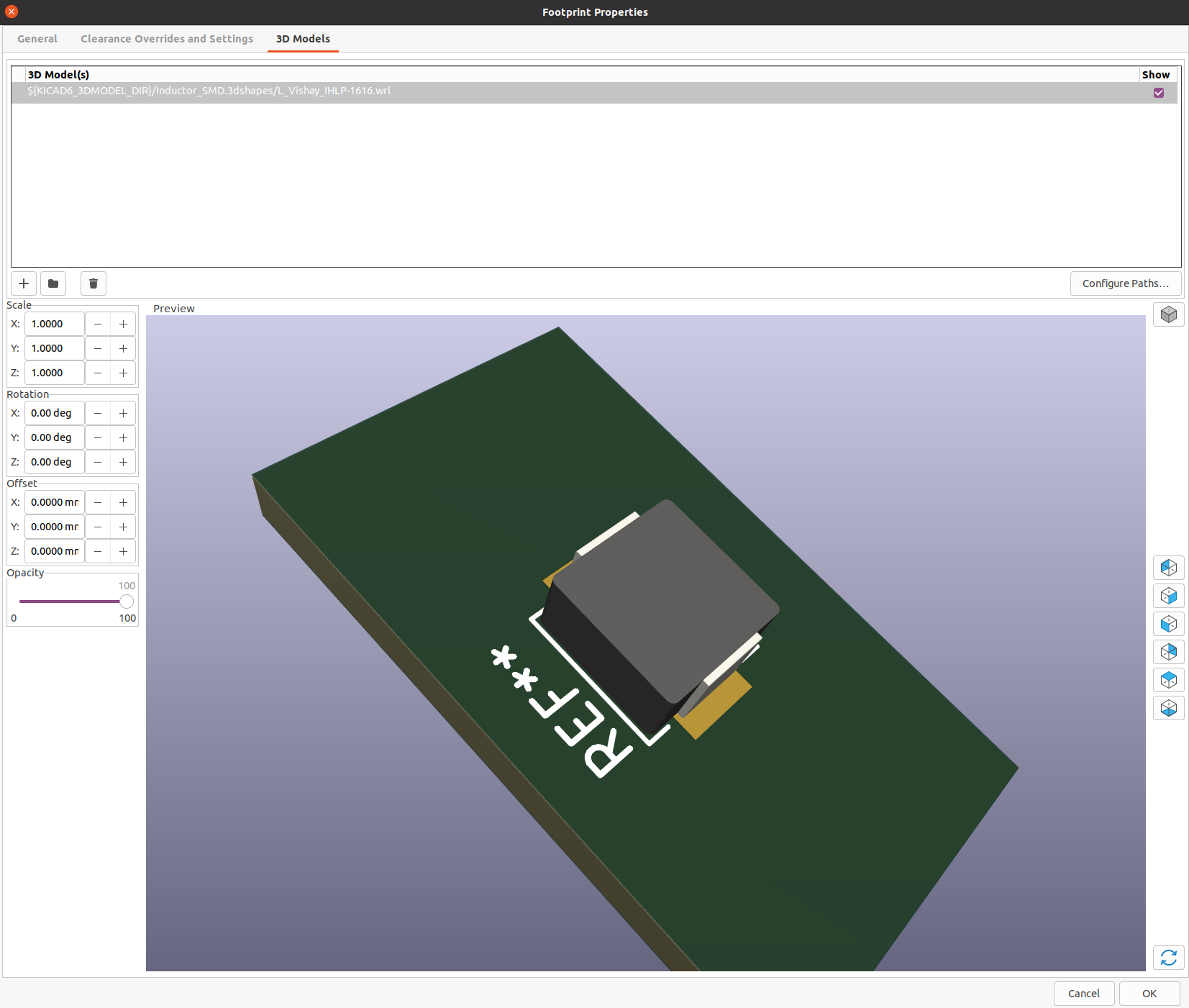

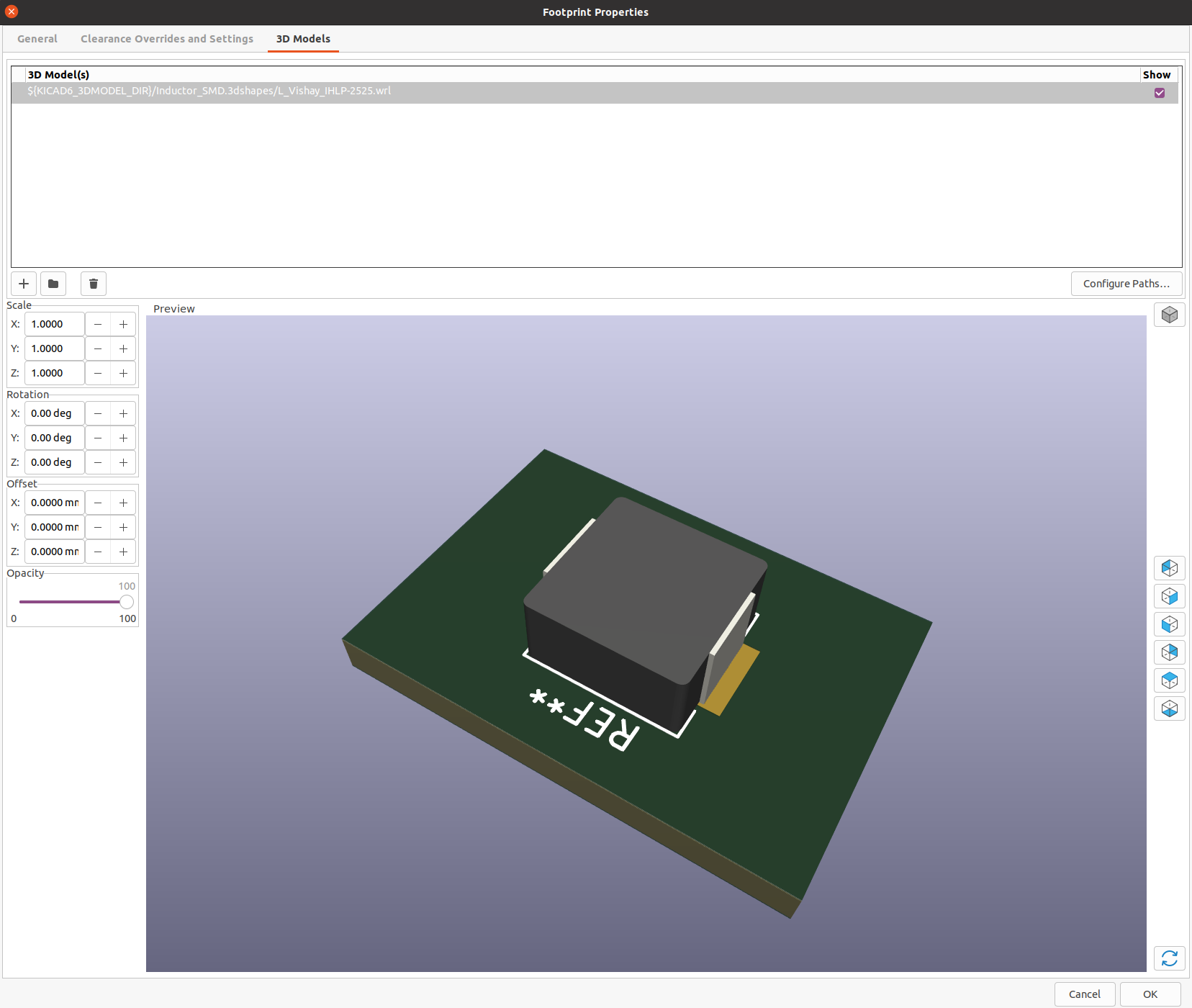

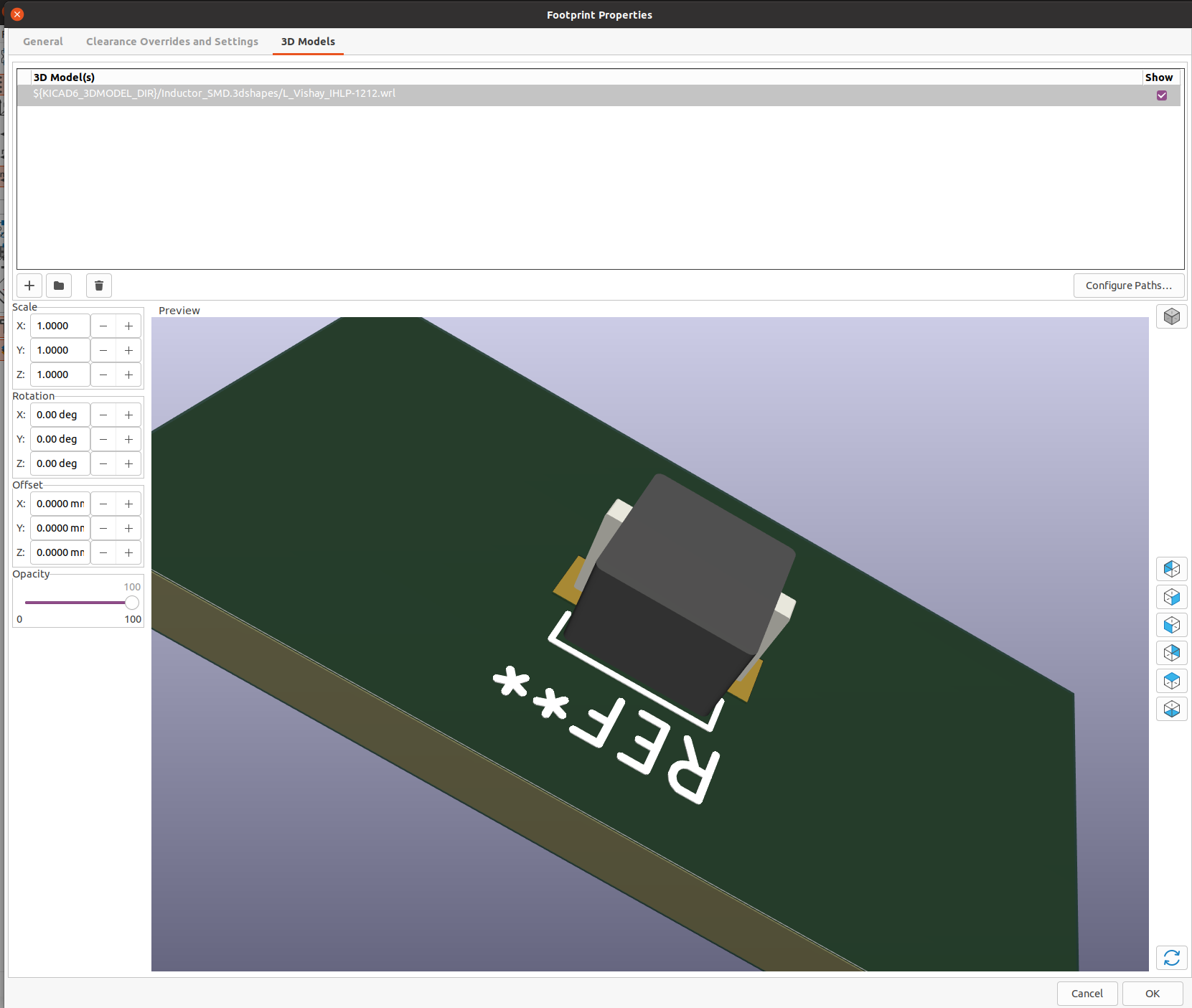

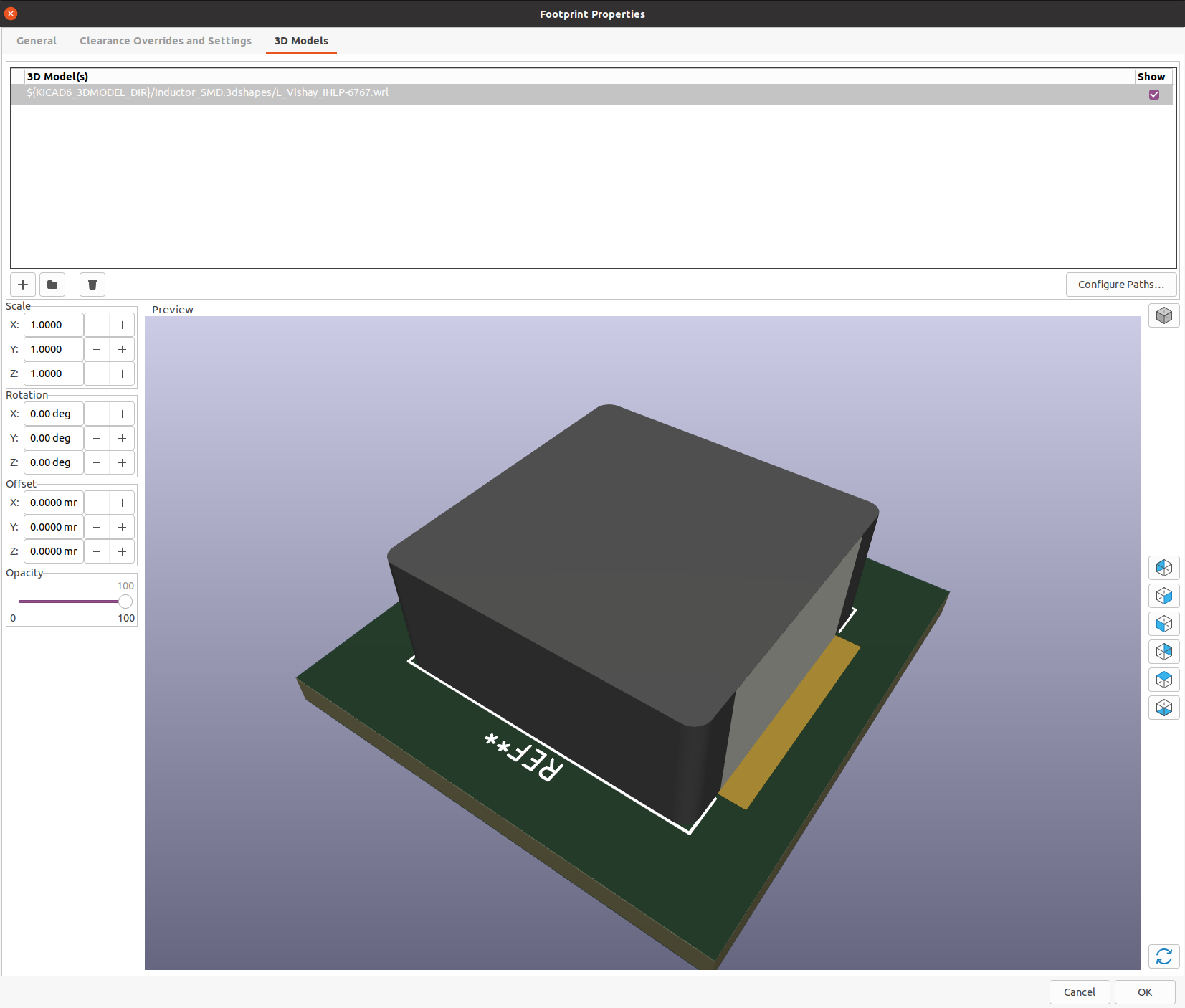

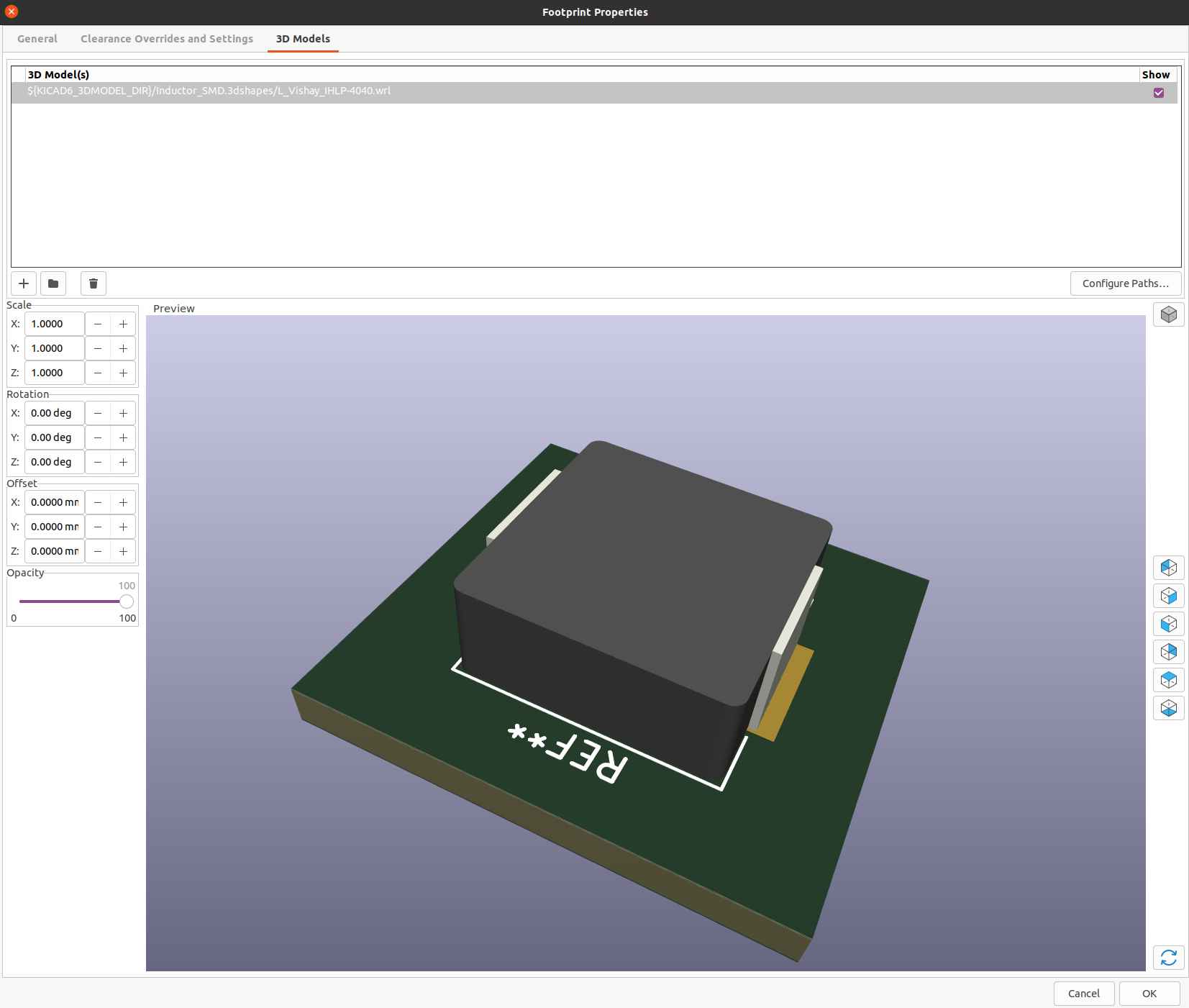

Adding Vishay inductors IHLP series

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/782

Adding Vishay inductors IHLP series https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/782
128 KiB
130 KiB
155 KiB
136 KiB
119 KiB
ivan_o commented 2 years ago
Collaborator

Adding Vishay inductors IHLP series

https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/10

Adding Vishay inductors IHLP series https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/10
119 KiB
128 KiB
ivan_o commented 2 years ago
Collaborator

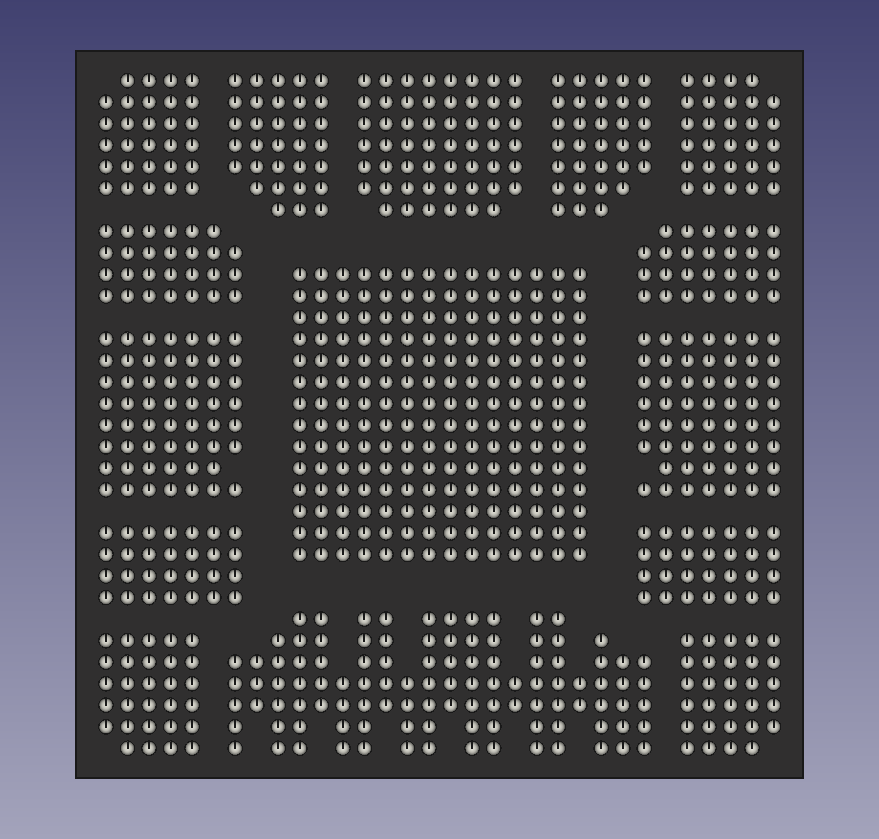

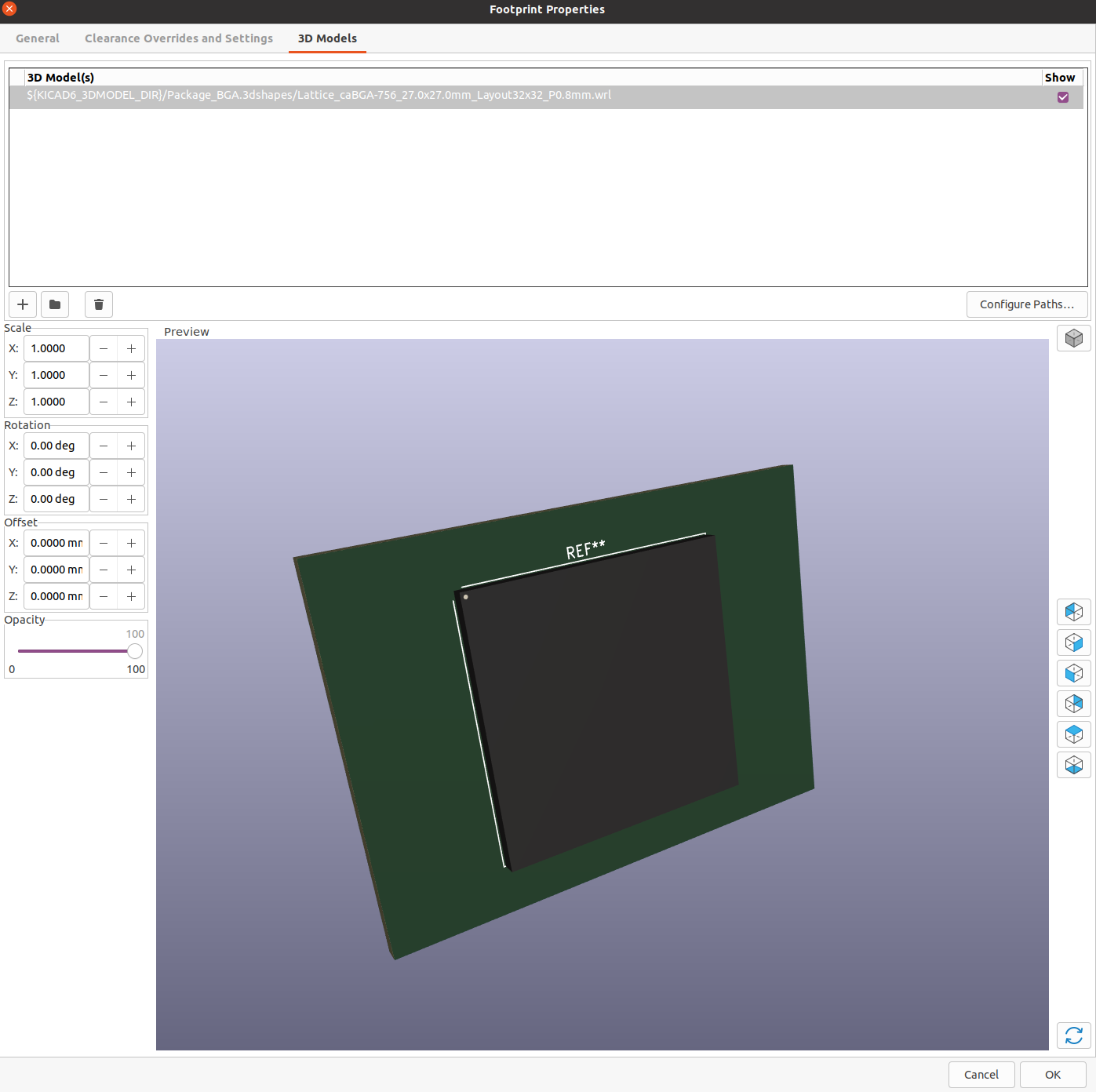

Adding Lattice_caBGA-756_27.0x27.0mm_Layout32x32_P0.8mm

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/783
https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/11

Adding Lattice_caBGA-756_27.0x27.0mm_Layout32x32_P0.8mm https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/783 https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/11
102 KiB
185 KiB
261 KiB
ivan_o commented 2 years ago
Collaborator

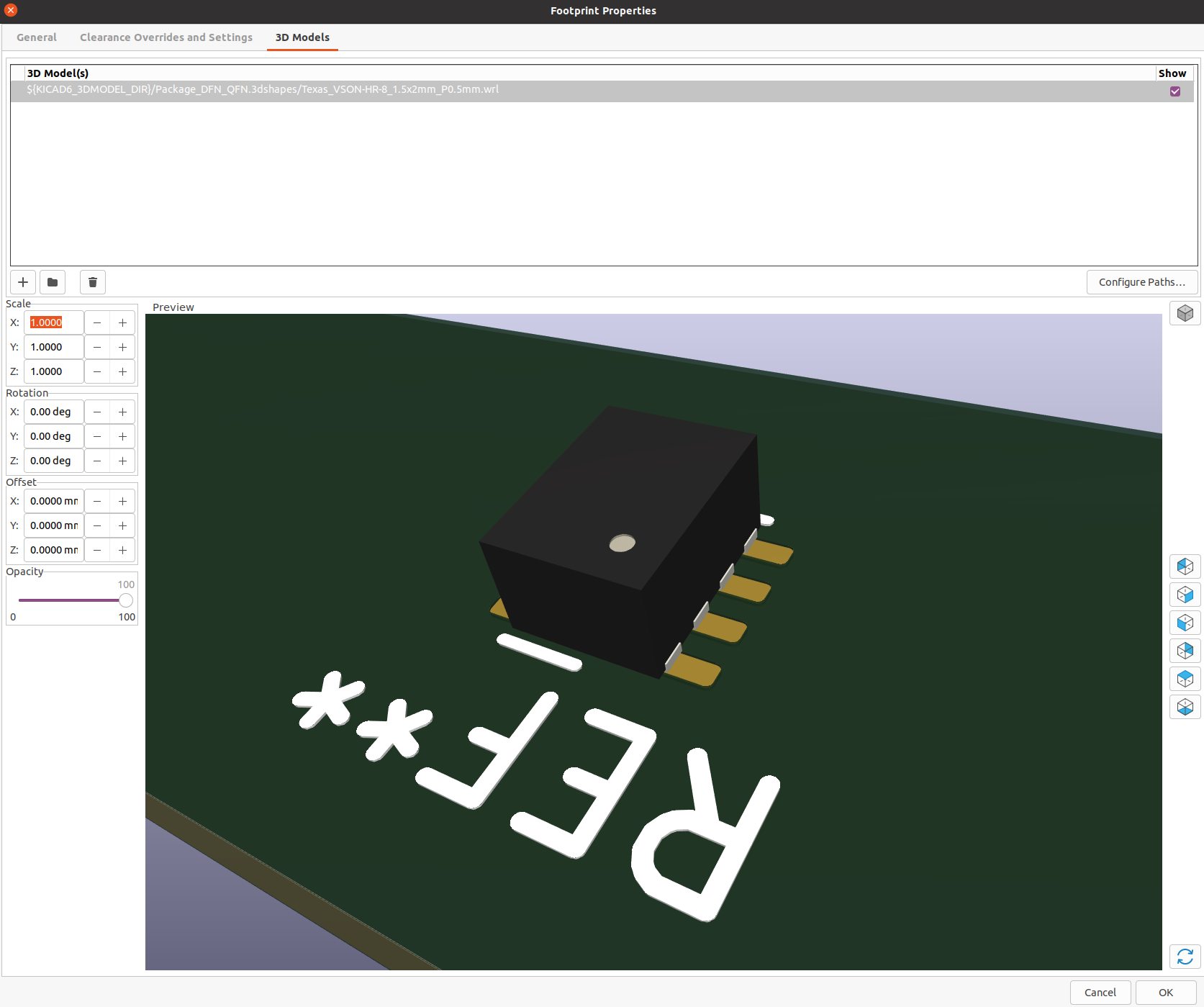

Adding Texas_VSON-HR-8_1.5x2mm_P0.5mm

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/784
https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/12

Adding Texas_VSON-HR-8_1.5x2mm_P0.5mm https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/784 https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/12
133 KiB
ivan_o commented 2 years ago
Collaborator

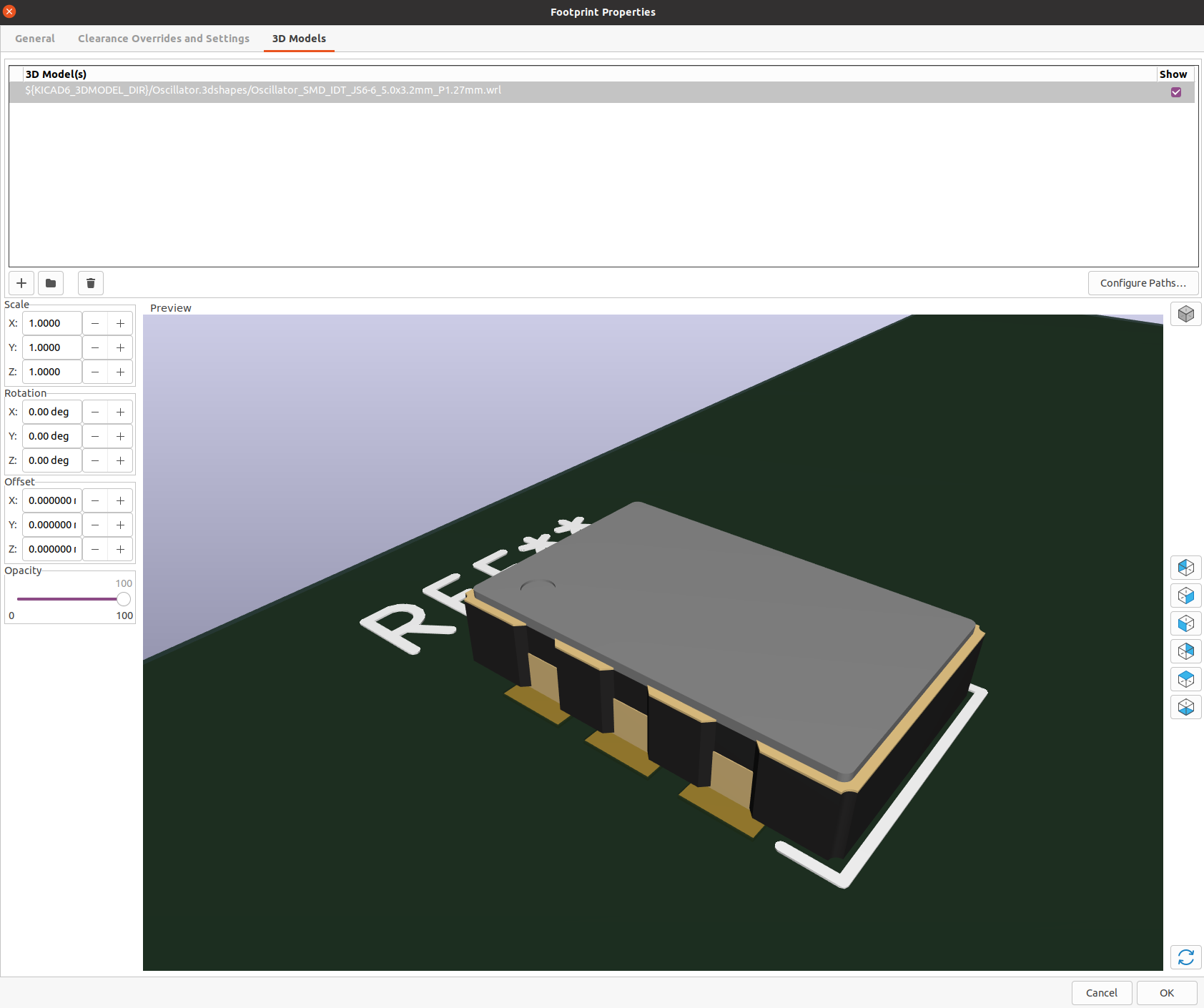

Adding Oscillator_SMD_IDT_JS6-6_5.0x3.2mm_P1.27mm

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/785
https://gitlab.com/kicad/libraries/kicad-packages3D-source/-/merge_requests/326

MERGED

Adding Oscillator_SMD_IDT_JS6-6_5.0x3.2mm_P1.27mm https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/785 https://gitlab.com/kicad/libraries/kicad-packages3D-source/-/merge_requests/326 MERGED
132 KiB
ivan_o commented 2 years ago
Collaborator

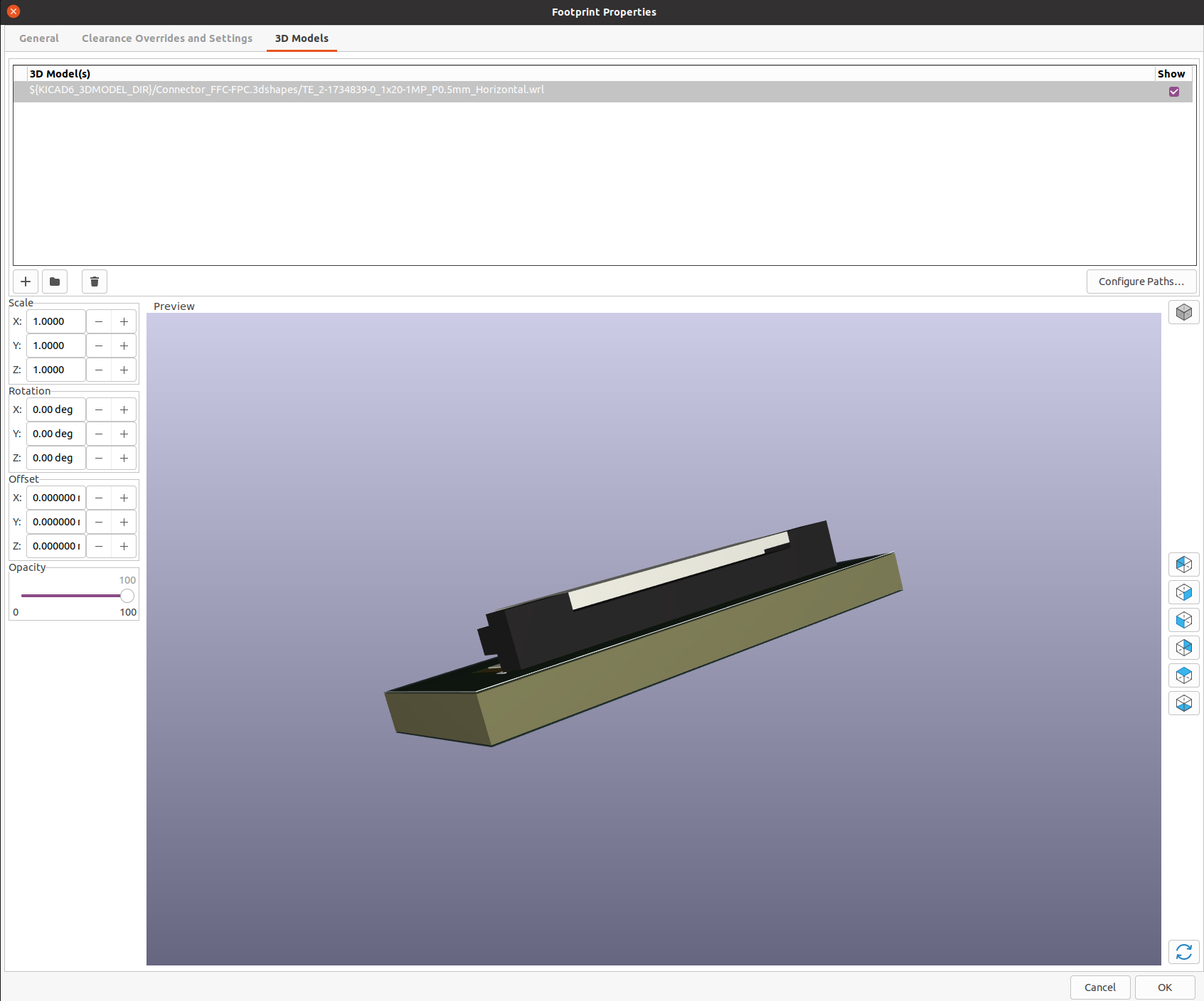

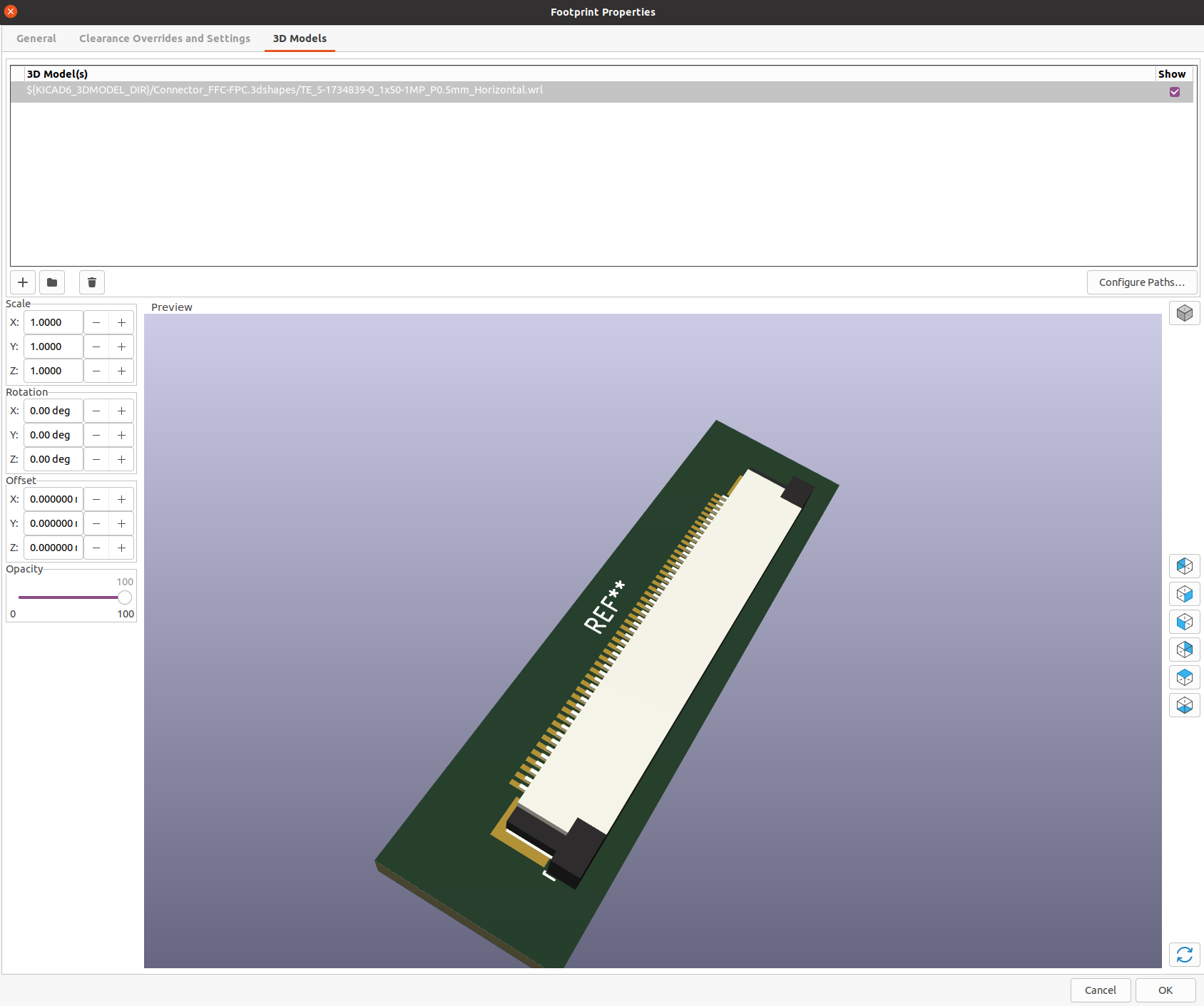

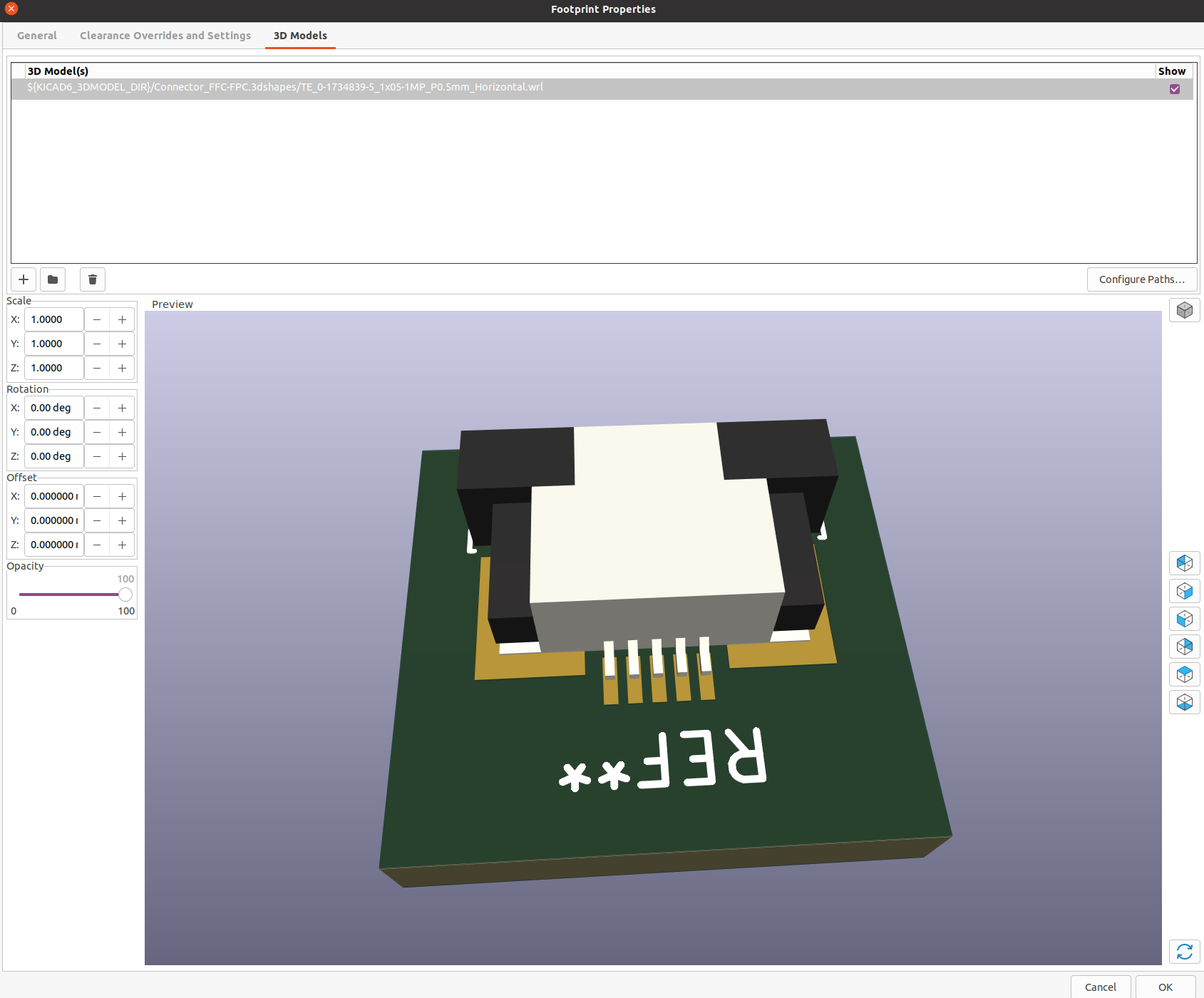

Adding FFC-FPC connectors TE 1734839 series

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/786
https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/13

Adding FFC-FPC connectors TE 1734839 series https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/786 https://gitlab.com/kicad/libraries/kicad-packages3D-generator/-/merge_requests/13
110 KiB
97 KiB
139 KiB
ivan_o commented 2 years ago
Collaborator

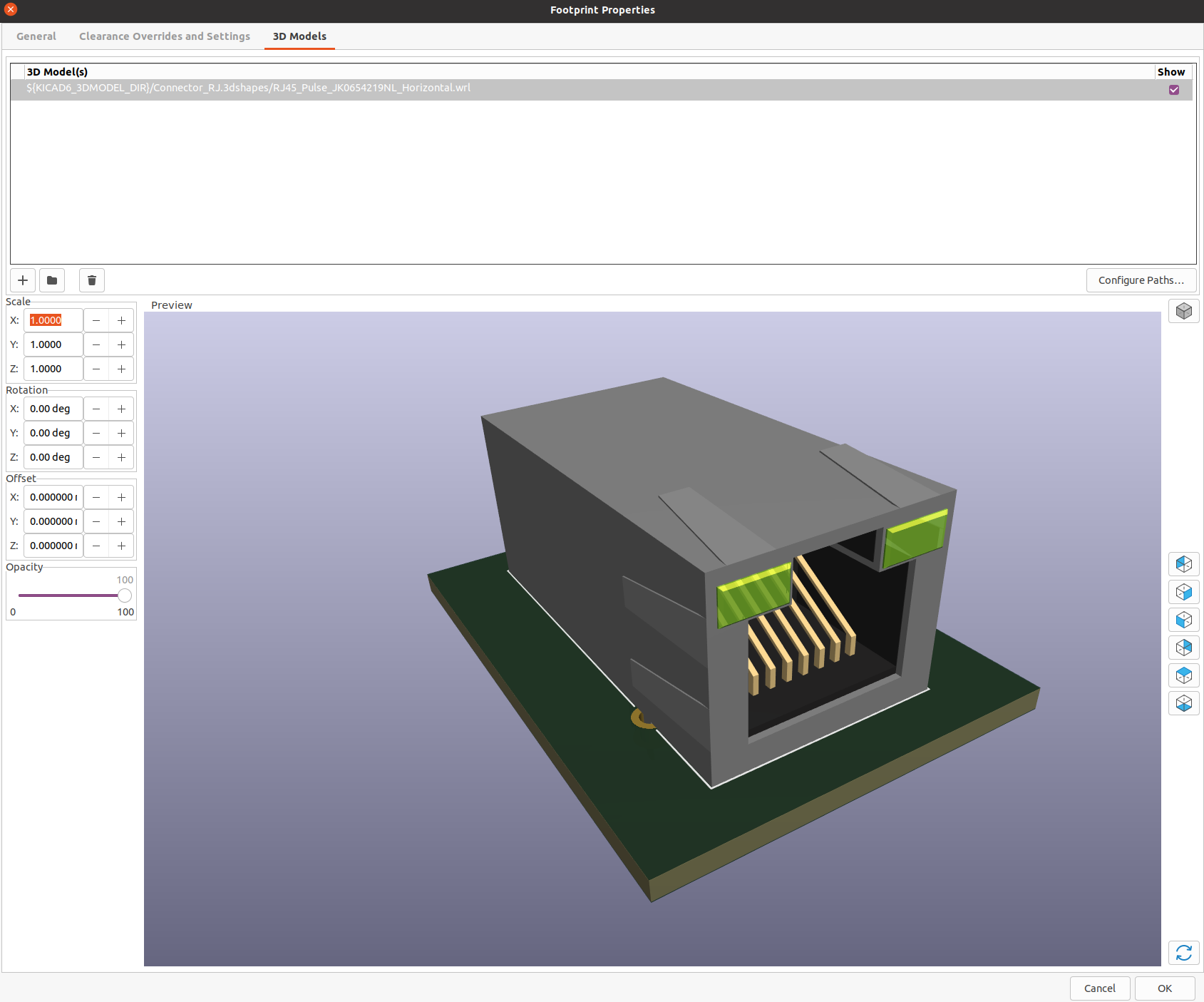

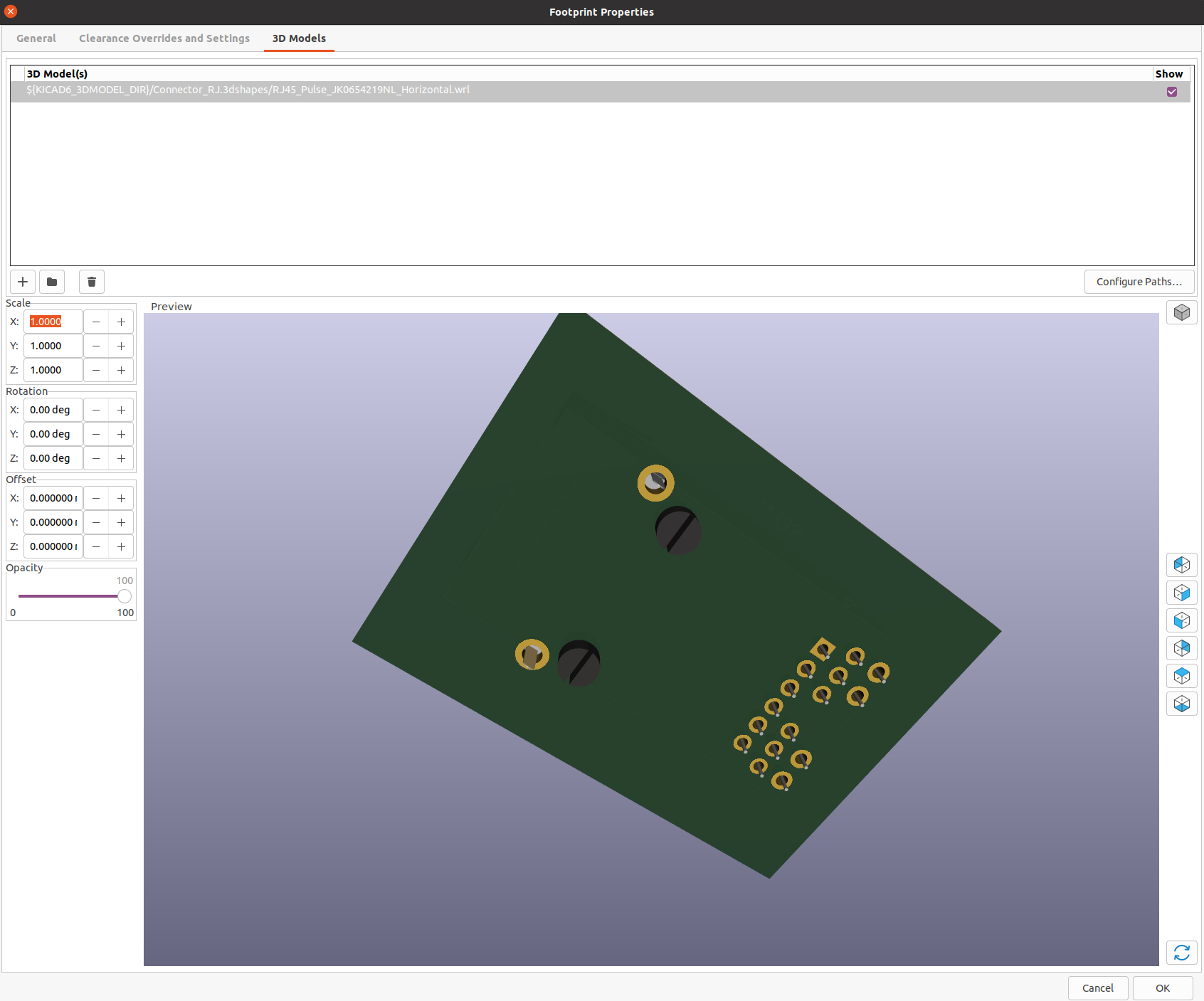

Adding Pulse connector RJ45_Pulse_JK0654219NL_Horizontal

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/787
https://gitlab.com/kicad/libraries/kicad-packages3D-source/-/merge_requests/327

Adding Pulse connector RJ45_Pulse_JK0654219NL_Horizontal https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/787 https://gitlab.com/kicad/libraries/kicad-packages3D-source/-/merge_requests/327
146 KiB
141 KiB
ivan_o commented 2 years ago
Collaborator

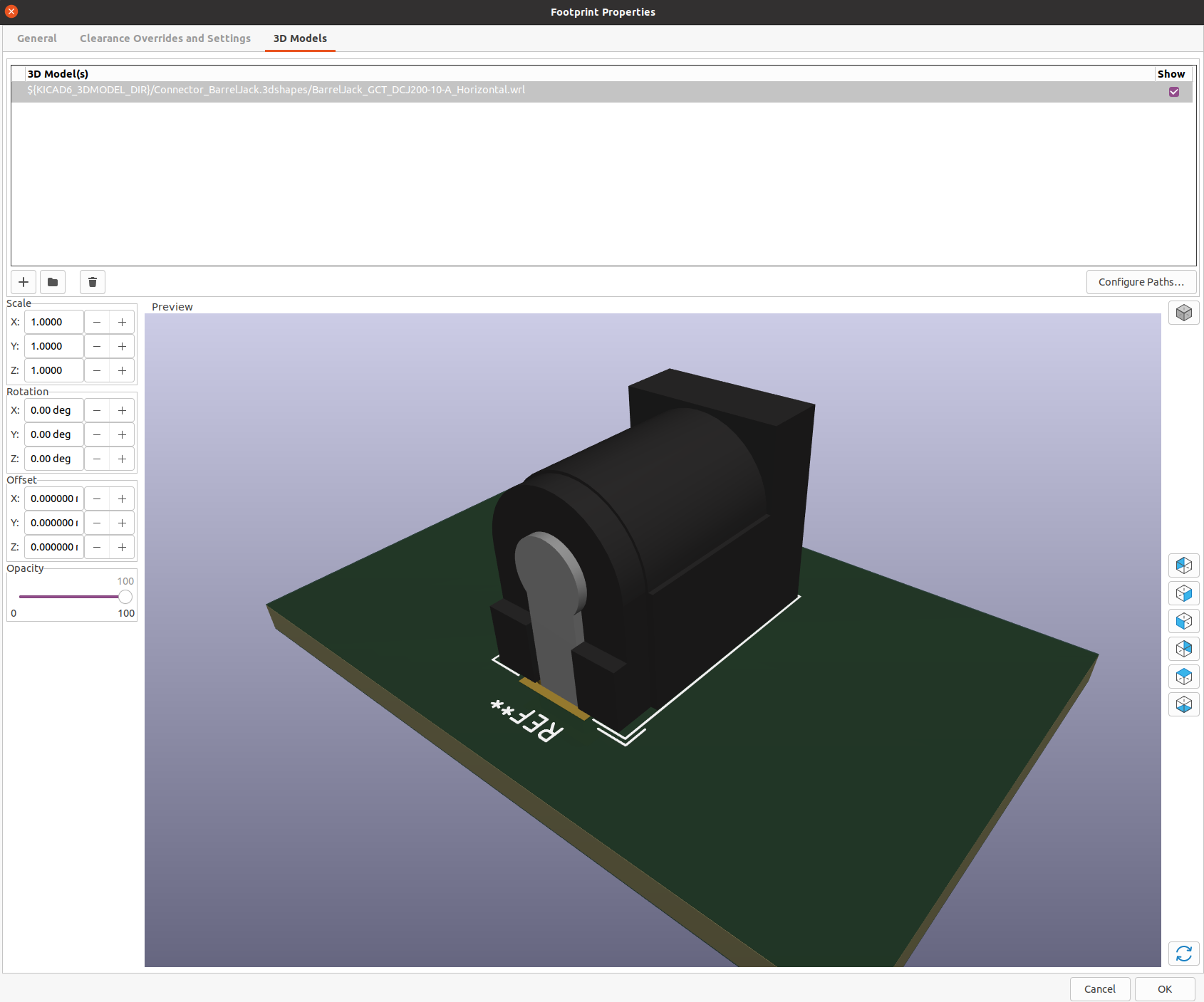

Adding BarrelJack_GCT_DCJ200-10-A_Horizontal

https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/789
https://gitlab.com/kicad/libraries/kicad-packages3D-source/-/merge_requests/329

Adding BarrelJack_GCT_DCJ200-10-A_Horizontal https://gitlab.com/kicad/libraries/kicad-packages3D/-/merge_requests/789 https://gitlab.com/kicad/libraries/kicad-packages3D-source/-/merge_requests/329
142 KiB
90 KiB
