Gang mask opening IST137059 #6

Closed

opened 5 years ago by jebba · 0 comments

jebba commented 5 years ago

Owner

ProtoExpress IST137059:

"While performing DFM validation we observed that, Gang mask opening is provided in both solder mask layer.Find attached snap shot for your quick reference. This job is going to be assembled at our facility and we prefer individual mask opening. Please allow us to remove Gang relief and go ahead with individual mask opening. Please confirm."

ProtoExpress IST137059: "While performing DFM validation we observed that, Gang mask opening is provided in both solder mask layer.Find attached snap shot for your quick reference. This job is going to be assembled at our facility and we prefer individual mask opening. Please allow us to remove Gang relief and go ahead with individual mask opening. Please confirm."

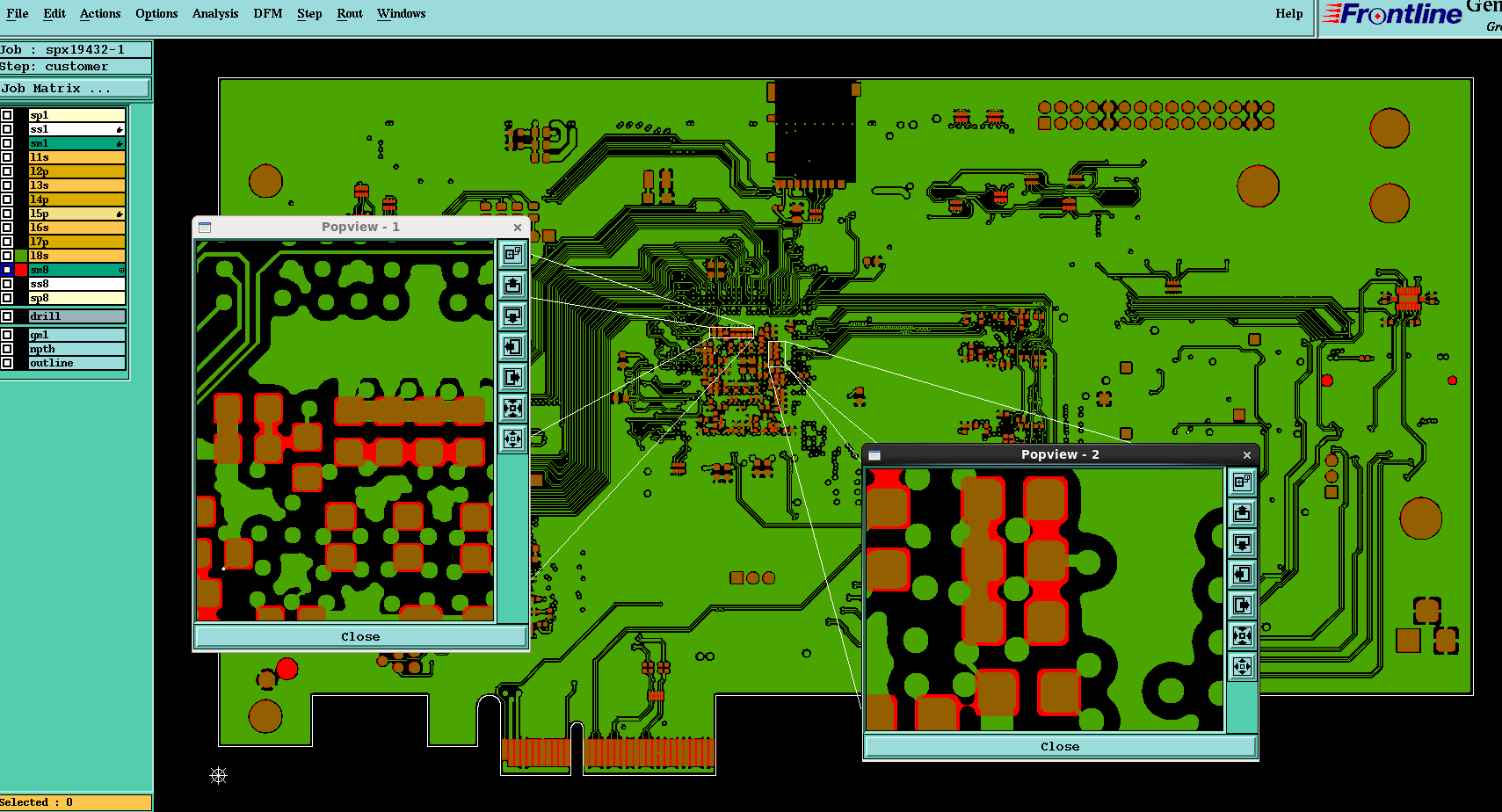

bottom mask.png

83 KiB

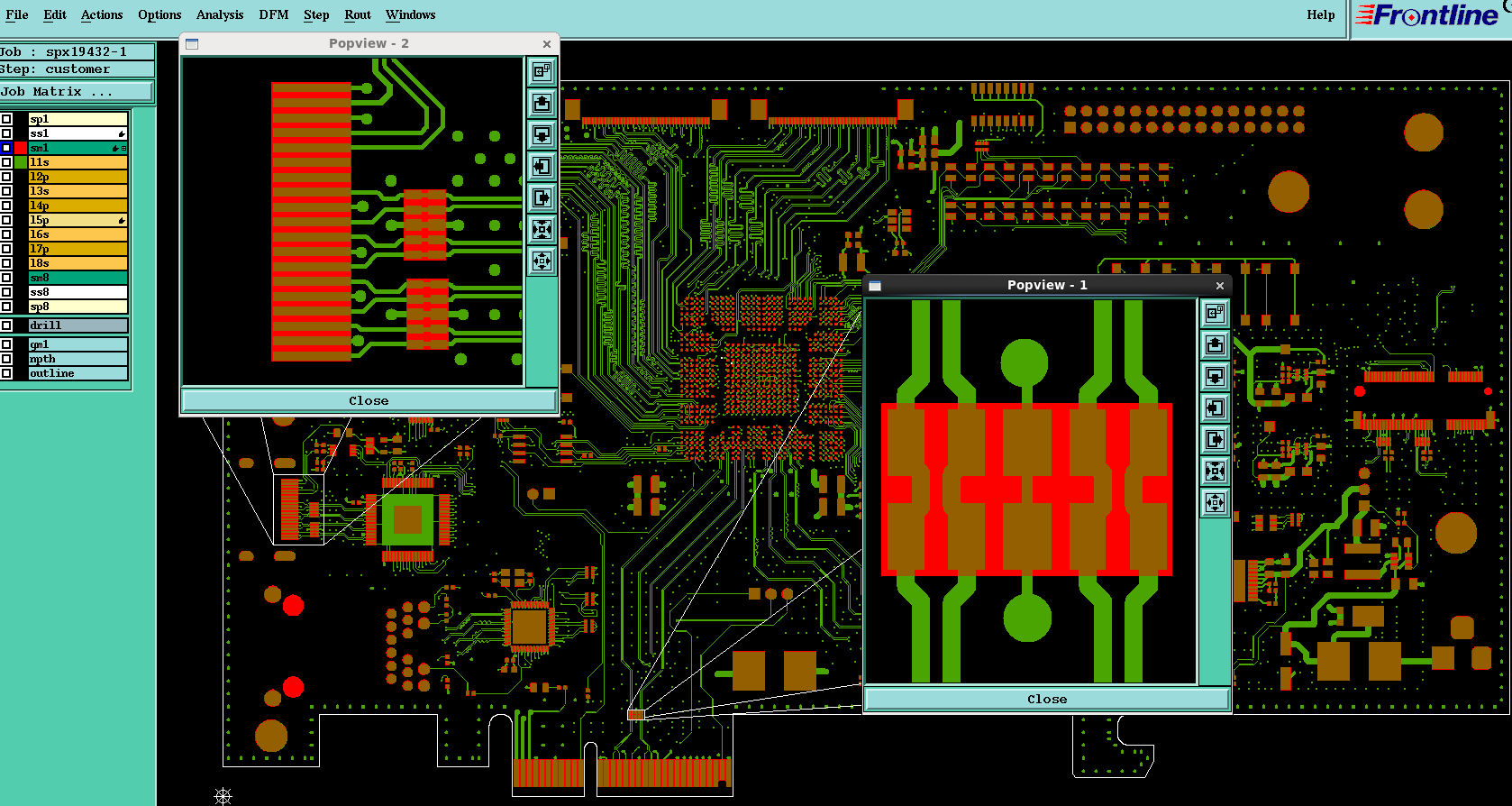

top mask.png

84 KiB

jebba added the Manufacturing label 5 years ago

jebba changed title from Gang mask opening to Gang mask opening IST137059 5 years ago

jebba closed this issue 5 years ago

jebba added this to the 1.0 milestone 5 years ago

jebba self-assigned this 5 years ago
