Check Spacing IST137063 #7

Closed

opened 5 years ago by jebba · 0 comments

jebba commented 5 years ago

Owner

ProtoExpress IST137063:

"While performing DFM validation on your order we observed that 3.042 mil spacing on your design ( top and bottom layer) but web spec calls 4 mil spacing. Also less than 4Mils spacing is not qualified for Web orders. This may required custom quote for which our sales team will get in touch with you."

ProtoExpress IST137063: "While performing DFM validation on your order we observed that 3.042 mil spacing on your design ( top and bottom layer) but web spec calls 4 mil spacing. Also less than 4Mils spacing is not qualified for Web orders. This may required custom quote for which our sales team will get in touch with you."

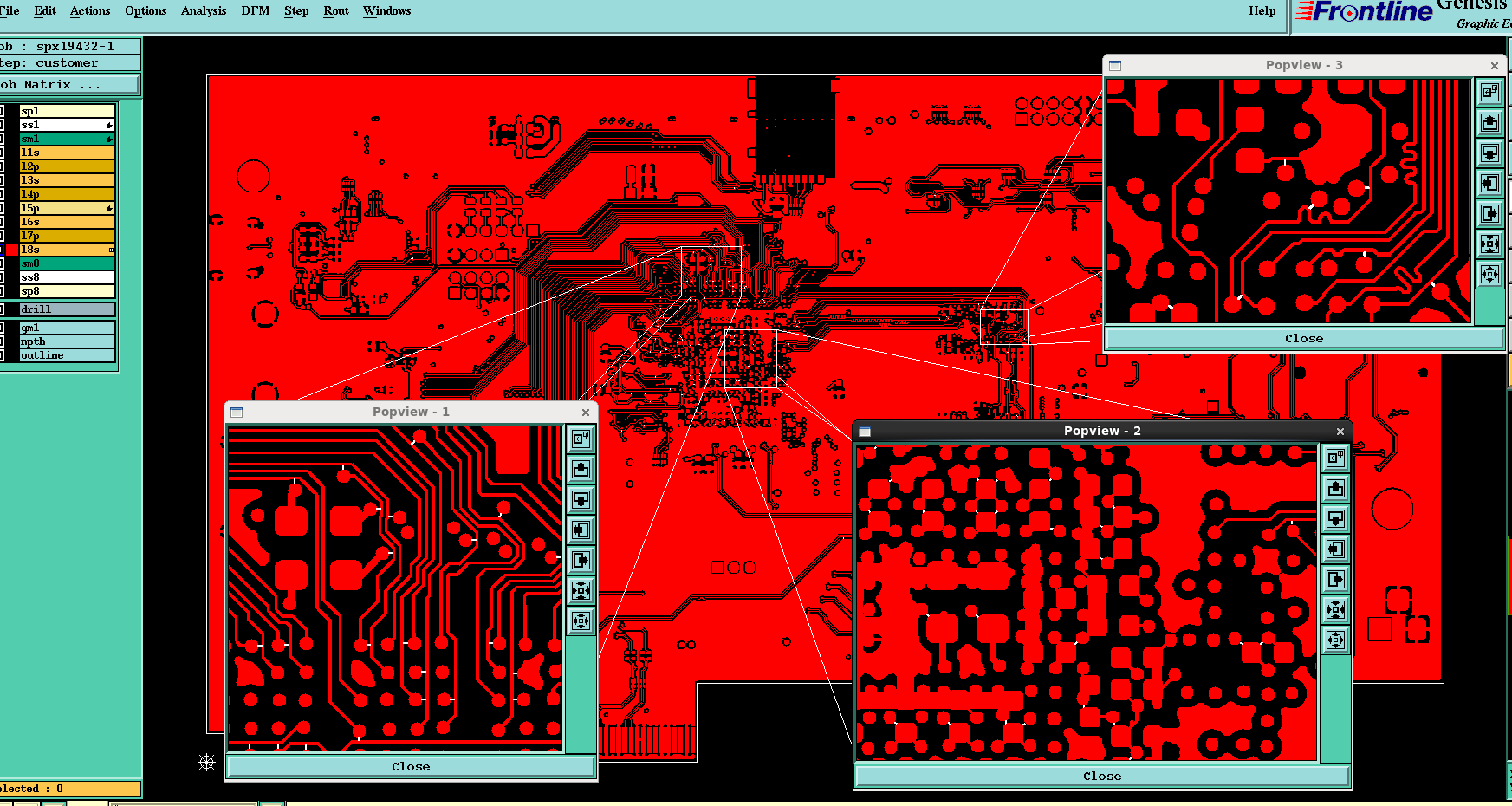

bottom layer.png

86 KiB

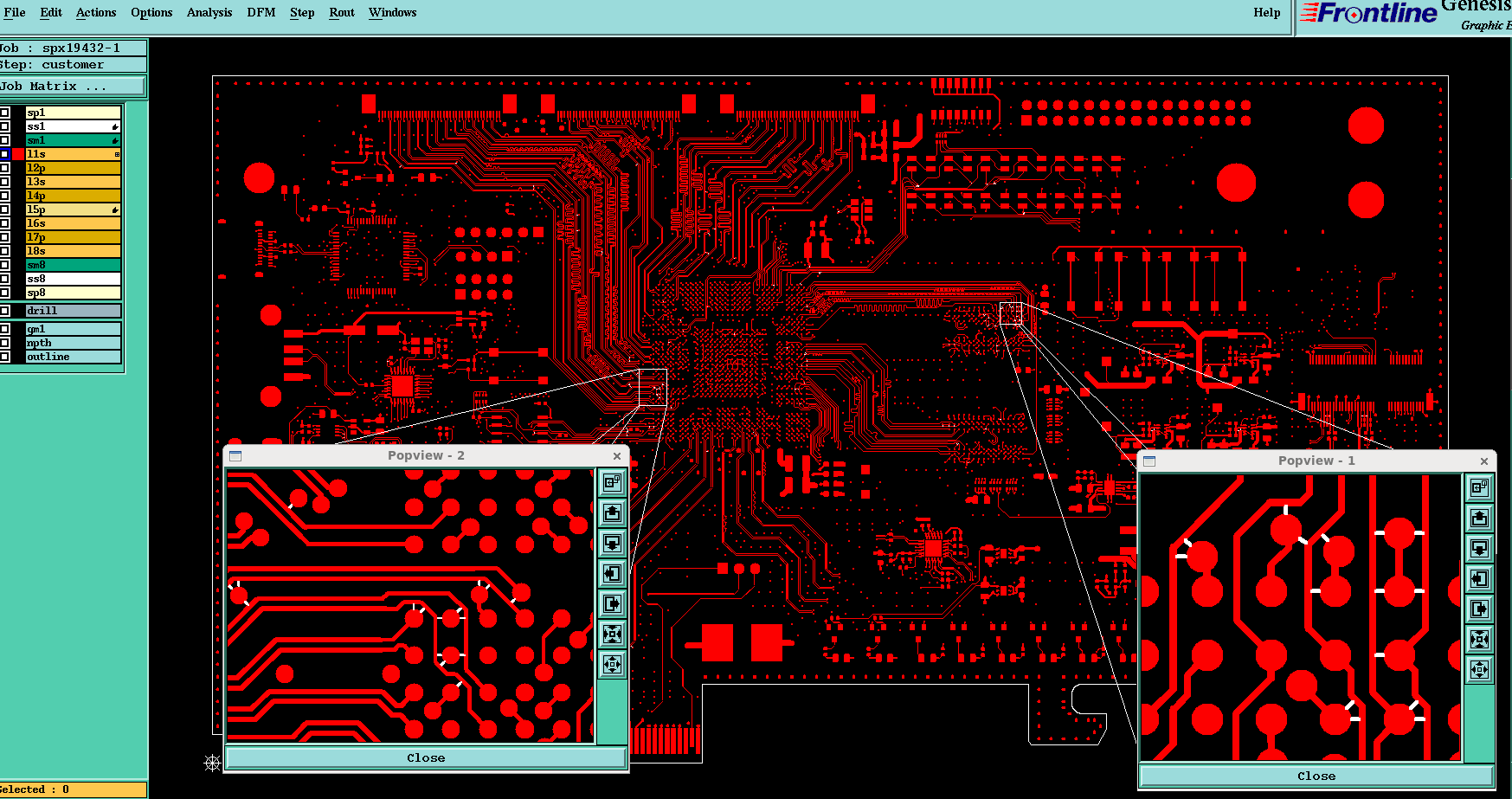

top layer.png

80 KiB

jebba added the Manufacturing label 5 years ago

jebba changed title from Check Spacing to Check Spacing IST137063 5 years ago

jebba closed this issue 5 years ago

jebba added this to the 1.0 milestone 5 years ago

jebba self-assigned this 5 years ago

jebba removed their assignment 5 years ago

jebba self-assigned this 5 years ago
