SD1 footprint mismatch IST137379 #10

Closed
opened 5 years ago by jebba · 3 comments
jebba commented 5 years ago
Owner

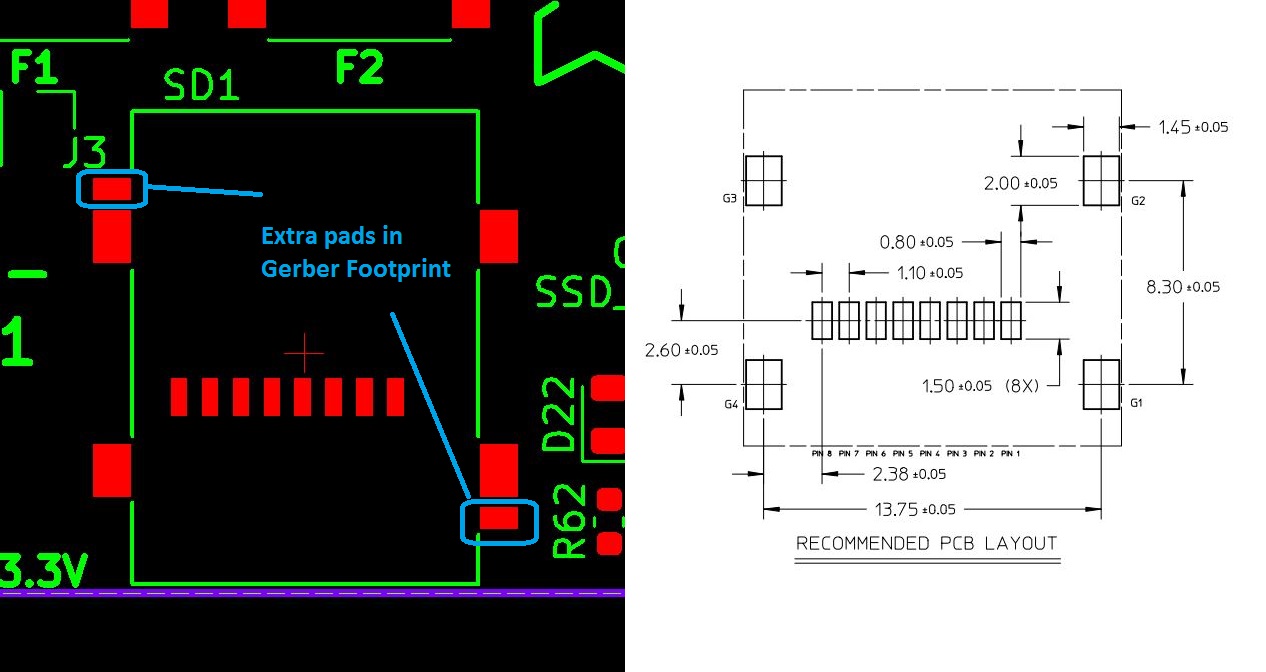

DFA checks of your files show a footprint mismatch of components SD1 (LINE ITEM#39) [MPN: 472192001] in GERBER files w.r.t. mechanical dimensions as per datasheet. As shown in image, extra pads marked in below image are present in Gerber footprint. Kindly review and advise.

DFA checks of your files show a footprint mismatch of components SD1 (LINE ITEM#39) [MPN: 472192001] in GERBER files w.r.t. mechanical dimensions as per datasheet. As shown in image, extra pads marked in below image are present in Gerber footprint. Kindly review and advise.
sd1 ger.JPG
138 KiB
jebba added the Manufacturing label 5 years ago
ivan_o was assigned by jebba 5 years ago
ivan_o commented 5 years ago
Collaborator

Gerber footprint designed for SCHD3A0100 component. It's not produced anymore but still available from some suppliers (ex. Aliexpress). Provided picture match Molex SD-47219-001, which should be compatible with this footprint. Marked extra pads could be leaved as they are or even without mask opening. It's up to PCB assembly producer.

Gerber footprint designed for SCHD3A0100 component. It's not produced anymore but still available from some suppliers (ex. Aliexpress). Provided picture match Molex SD-47219-001, which should be compatible with this footprint. Marked extra pads could be leaved as they are or even without mask opening. It's up to PCB assembly producer.
jebba commented 5 years ago
Poster
Owner

Sent to ProtoExpress.

Sent to ProtoExpress.
jebba commented 5 years ago
Poster
Owner

ProtoExpress:

"

We will place the component SD1 as is on the available footprint.

"

ProtoExpress: " We will place the component SD1 as is on the available footprint. "
jebba closed this issue 5 years ago
