U6 footprint mismatch IST137381 #11

Closed
opened 5 years ago by jebba · 4 comments
jebba commented 5 years ago
Owner

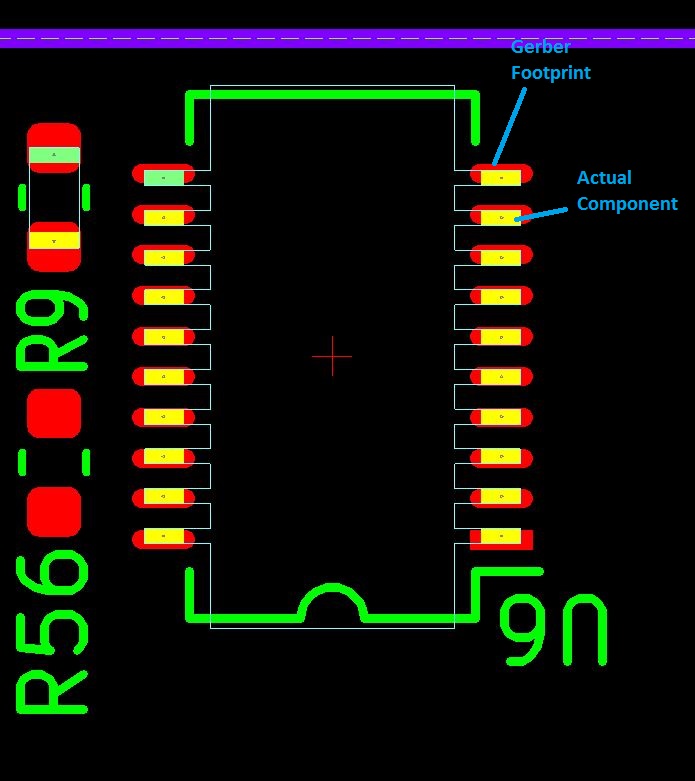

DFA checks of your files show a footprint mismatch of components U6 (LINE ITEM#42) [MPN: FT231XS-R] in GERBER files w.r.t. mechanical dimensions as per datasheet. As shown in image, actual component have pitch of 0.635mm but pitch in Gerber footprint is 0.65 mm. Kindly review and advise.

DFA checks of your files show a footprint mismatch of components U6 (LINE ITEM#42) [MPN: FT231XS-R] in GERBER files w.r.t. mechanical dimensions as per datasheet. As shown in image, actual component have pitch of 0.635mm but pitch in Gerber footprint is 0.65 mm. Kindly review and advise.
92 KiB
jebba added the Manufacturing label 5 years ago
ivan_o was assigned by jebba 5 years ago
ivan_o commented 5 years ago
Collaborator

It's true. There is mismatsh between footprint and actual component pitch. But we think that component could be soldered on this footprint without any consequences in case of placing as shown on the picture.

It's true. There is mismatsh between footprint and actual component pitch. But we think that component could be soldered on this footprint without any consequences in case of placing as shown on the picture.
jebba commented 5 years ago
Poster
Owner

Sent to ProtoExpress.

Sent to ProtoExpress.
jebba commented 5 years ago
Poster
Owner

ProtoExpress writes:

"

We will try to place the component u6 as is on the available footprint, if unable we will DNI it and ship back along with the board. Please advise if this is acceptable to you.

"

ProtoExpress writes: " We will try to place the component u6 as is on the available footprint, if unable we will DNI it and ship back along with the board. Please advise if this is acceptable to you. "
jebba commented 5 years ago
Poster
Owner

Accepted...

Accepted...
jebba closed this issue 5 years ago
