gangmask opening #2

Closed
opened 5 years ago by jebba · 2 comments
jebba commented 5 years ago
Owner

ProtoExpress IST137269:

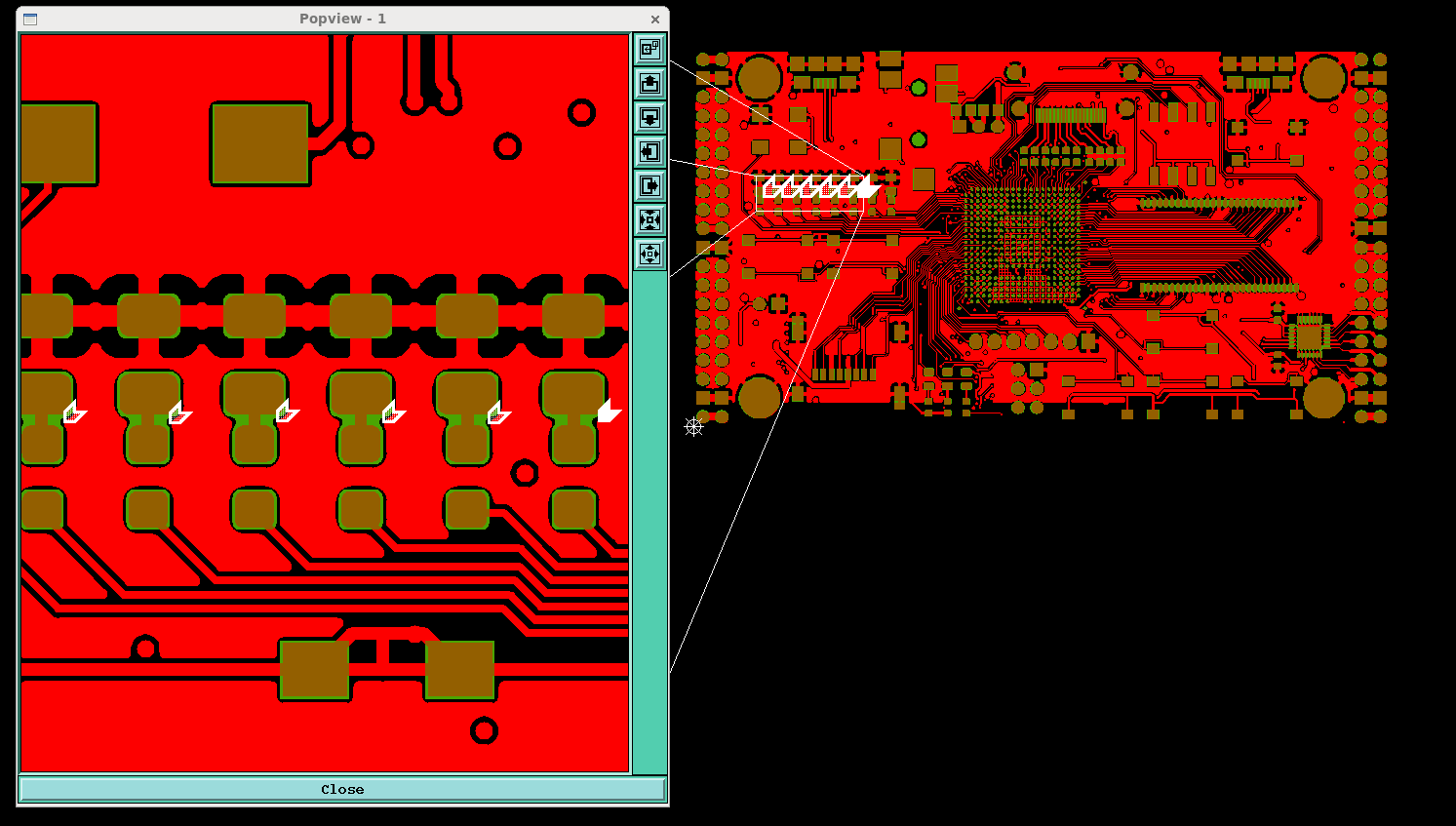

"While performing DFM validation on your order we observed, gangmask opening is present for the pads in top and bottom layer. Since this order is going to be assembles at our facility we prefer to have individual mask opening. IS this acceptable? Please confirm. Refer to the attached snap shot for quick reference."

ProtoExpress IST137269: "While performing DFM validation on your order we observed, gangmask opening is present for the pads in top and bottom layer. Since this order is going to be assembles at our facility we prefer to have individual mask opening. IS this acceptable? Please confirm. Refer to the attached snap shot for quick reference."
54 KiB
individual mask opening.png
55 KiB
jebba added the Manufacturing label 5 years ago
ivan_o was assigned by jebba 5 years ago
ivan_o commented 5 years ago
Collaborator

If PCB production and assembly made by the same producer mask opening is up to him. Confirmed.

If PCB production and assembly made by the same producer mask opening is up to him. Confirmed.
jebba commented 5 years ago
Poster
Owner

Per previous instructions "Confirm,individual mask opening OK."

Per previous instructions "Confirm,individual mask opening OK."
jebba closed this issue 5 years ago
