Stubs in top and bottom layer IST137272 #3

Closed
opened 5 years ago by jebba · 2 comments
jebba commented 5 years ago
Owner

ProtoExpress IST137272:

"While performing DFM validation on your order we observed that, one un-terminated trace (stub) is present in top layer and 2 in bottom layer. Attached snap shot for your quick reference. Can we ignore this trace and proceed as is? Please confirm."

ProtoExpress IST137272: "While performing DFM validation on your order we observed that, one un-terminated trace (stub) is present in top layer and 2 in bottom layer. Attached snap shot for your quick reference. Can we ignore this trace and proceed as is? Please confirm."

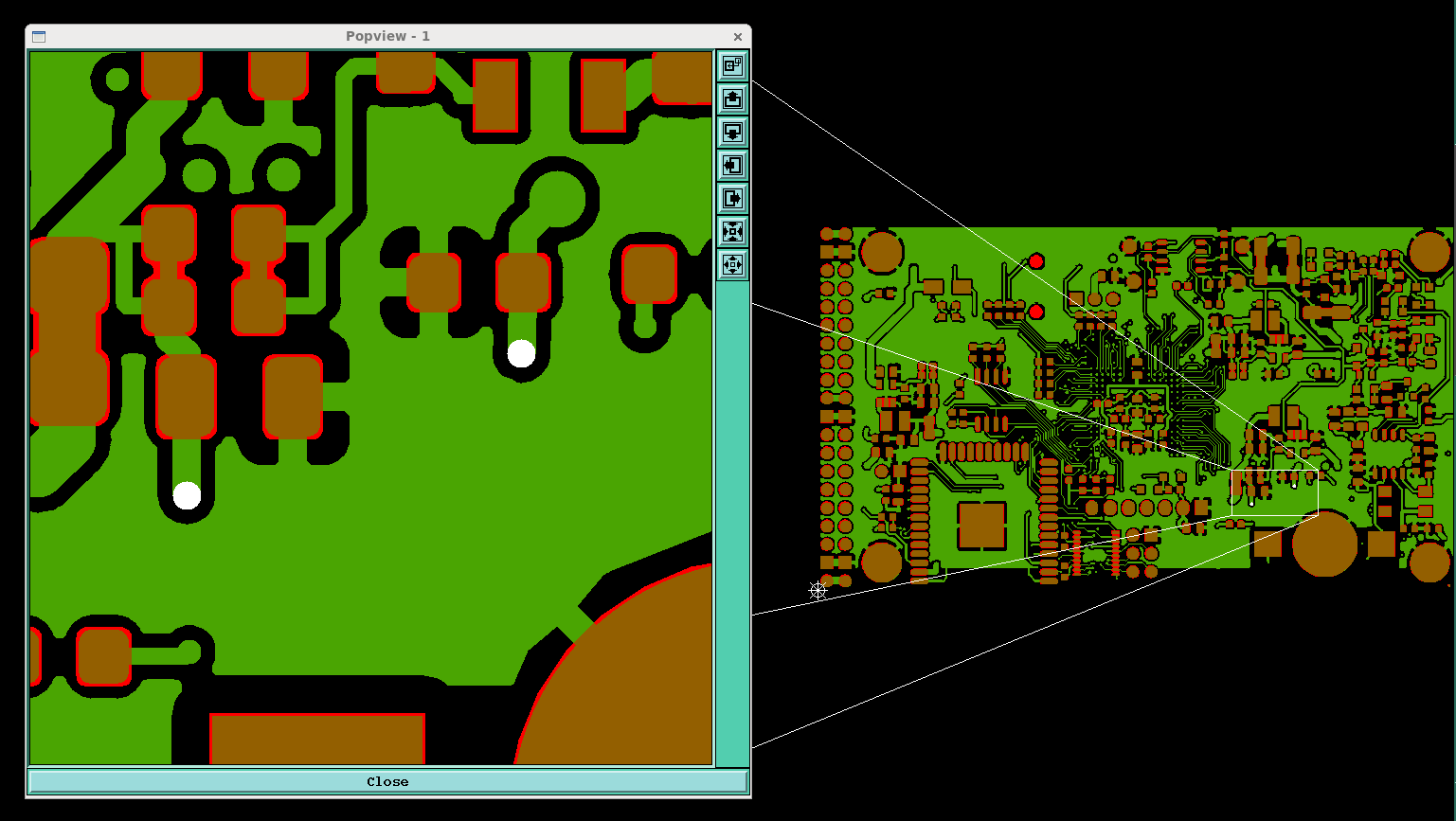

bottom layer stub.png
59 KiB

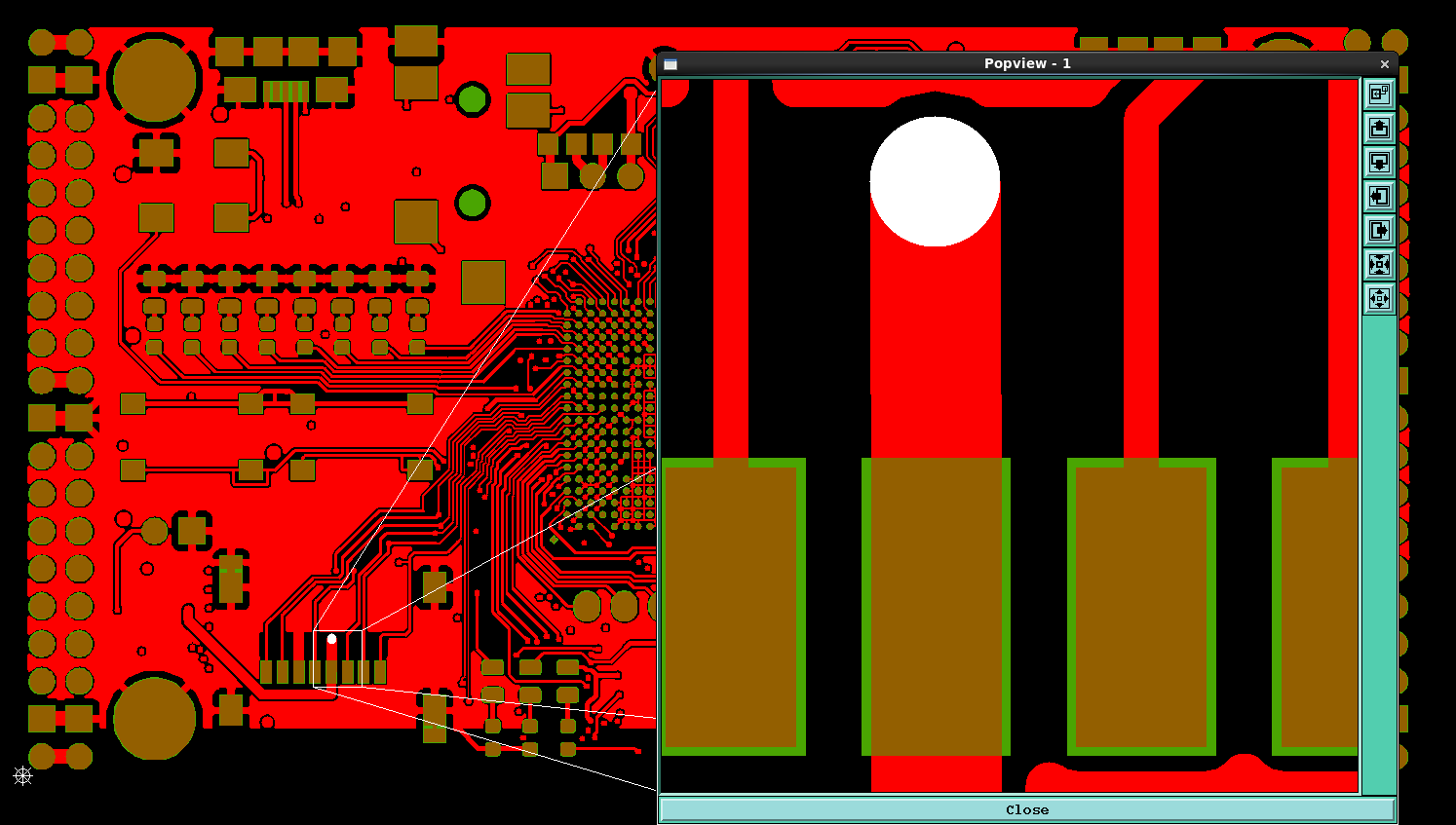

top layer stub.png
54 KiB
jebba added the Manufacturing label 5 years ago
ivan_o was assigned by jebba 5 years ago
ivan_o commented 5 years ago
Collaborator

We are not sure what do you mean by "proceed as is". But showed stubs could be ignored

We are not sure what do you mean by "proceed as is". But showed stubs could be ignored
jebba commented 5 years ago
Poster
Owner

Ignored, per previous comments to ProtoExpress.

Ignored, per previous comments to ProtoExpress.
jebba changed title from Stubs in top and bottom layer to Stubs in top and bottom layer IST137272 5 years ago
jebba closed this issue 5 years ago
