C25 etc advise MPN IST137333 #4

Closed
opened 5 years ago by jebba · 2 comments
jebba commented 5 years ago
Owner

ProtoExpress IST137333:

"For reference C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C48 C49 C50 C51 C52 C53 there are 2 MPN provided please advise which one to use
line#6 MPN:CC0603JRX7R8BB223 , CX0603MRX7R8BB223
line#30 MPN:RC0603FR-0715KL ,RC0603FR-1015KL"

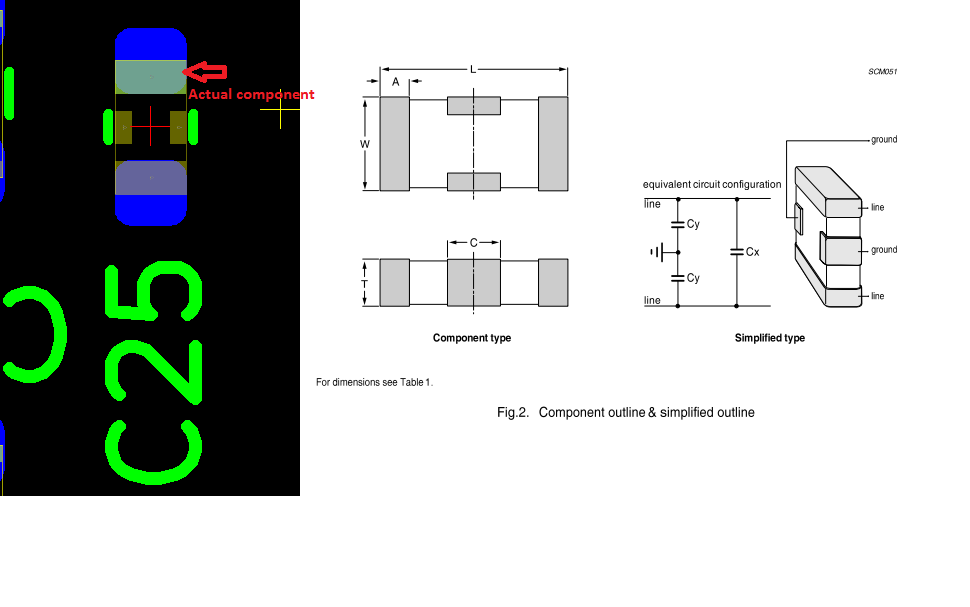

"Footprint mismatch for C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C48 C49 C50 C51 C52 C53 (MPN:CX0603MRX7R8BB223). Actual component is of 4 pads but Gerber footprint shows 2 pads, kindly provide correct alternate part number or advise if you wish to make components DNI."

ProtoExpress IST137333: "For reference C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C48 C49 C50 C51 C52 C53 there are 2 MPN provided please advise which one to use line#6 MPN:CC0603JRX7R8BB223 , CX0603MRX7R8BB223 line#30 MPN:RC0603FR-0715KL ,RC0603FR-1015KL" "Footprint mismatch for C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C48 C49 C50 C51 C52 C53 (MPN:CX0603MRX7R8BB223). Actual component is of 4 pads but Gerber footprint shows 2 pads, kindly provide correct alternate part number or advise if you wish to make components DNI."
34 KiB
jebba added the Manufacturing label 5 years ago
ivan_o was assigned by jebba 5 years ago
ivan_o commented 5 years ago
Collaborator

Looks like C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C48 C49 C50 C51 C52 C53 should be usual 22 nF ceramic capacitors. For example TMK107B7223KA-T.

Looks like C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C48 C49 C50 C51 C52 C53 should be usual 22 nF ceramic capacitors. For example TMK107B7223KA-T.
jebba commented 5 years ago
Poster
Owner

Sent to ProtoExpress.

Sent to ProtoExpress.
jebba changed title from C25 etc advise MPN to C25 etc advise MPN IST137333 5 years ago
jebba closed this issue 5 years ago
