SW1 Pin 1 IST137763 #9

Closed
opened 5 years ago by jebba · 2 comments
jebba commented 5 years ago
Owner

ProtoExpress IST137763:

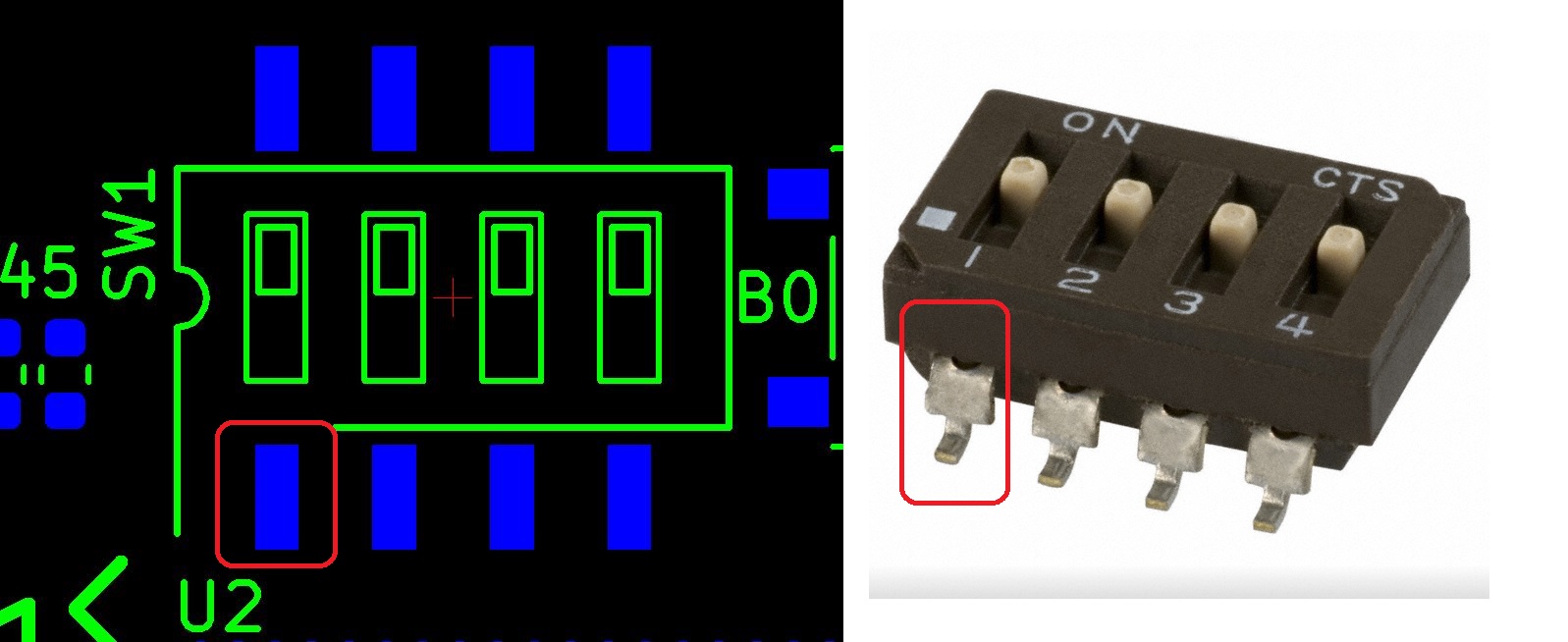

"For the DFA checks, we need you to advise if the marked pad of components mentioned below is pin-1:
SW1 (LINE ITEM#40) [MPN: 219-4MST]"

ProtoExpress IST137763: "For the DFA checks, we need you to advise if the marked pad of components mentioned below is pin-1: SW1 (LINE ITEM#40) [MPN: 219-4MST]"
175 KiB
jebba added the Manufacturing label 5 years ago
ivan_o was assigned by jebba 5 years ago
ivan_o commented 5 years ago
Collaborator

Yes, marked pad is pin 1

Yes, marked pad is pin 1
jebba commented 5 years ago
Poster
Owner

Sent to ProtoExpress.

Sent to ProtoExpress.
jebba changed title from SW1 Pin 1 to SW1 Pin 1 IST137763 5 years ago
jebba closed this issue 5 years ago
