kicad-packages3D: Adding BarrelJack_CUI_PJ-063AH_Horizontal #36

Closed
opened 6 years ago by ivan_o · 2 comments
ivan_o commented 6 years ago
Collaborator

https://github.com/KiCad/kicad-packages3D/pulls/ki5libs

https://github.com/KiCad/kicad-packages3D/pulls/ki5libs
105 KiB
ivan_o commented 6 years ago
Poster
Collaborator

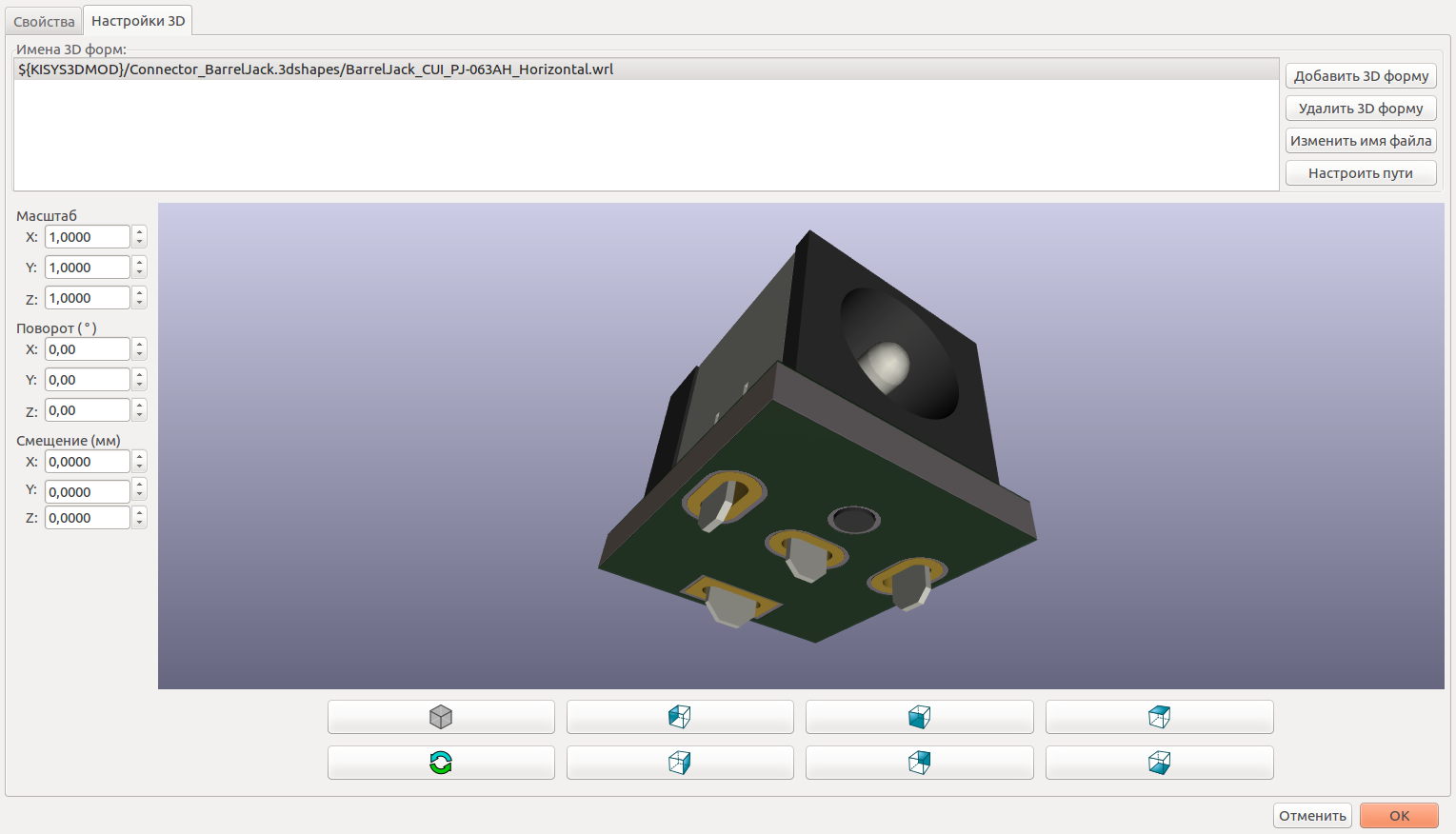

A screenshot of the model(s) aligned with KiCad footprints is very useful - DONE

Was the 3D model(s) created in a mechanical modelling program? - DONE

Source files (or scripts) have been contributed - DONE

Step model submitted in 1:1 scale - DONE

WRL model submitted in 1:2.54 scale - DONE

3D model alignment checked against KiCad footprint - DONE

WRL model uses correct material properties -

Geometry check performed against mechanical models -

A screenshot of the model(s) aligned with KiCad footprints is very useful - DONE Was the 3D model(s) created in a mechanical modelling program? - DONE Source files (or scripts) have been contributed - DONE Step model submitted in 1:1 scale - DONE WRL model submitted in 1:2.54 scale - DONE 3D model alignment checked against KiCad footprint - DONE WRL model uses correct material properties - Geometry check performed against mechanical models -
ivan_o commented 6 years ago
Poster
Collaborator

MERGED into master

MERGED into master
ivan_o closed this issue 6 years ago
