kicad-packages3D: Adding JAE MXM connector MM70-314-310B1 #7

Open
opened 5 years ago by ivan_o · 1 comments
ivan_o commented 5 years ago
Collaborator

https://github.com/KiCad/kicad-packages3D/pull/538

https://github.com/KiCad/kicad-packages3D/pull/538
96 KiB
ivan_o commented 5 years ago
Poster
Collaborator

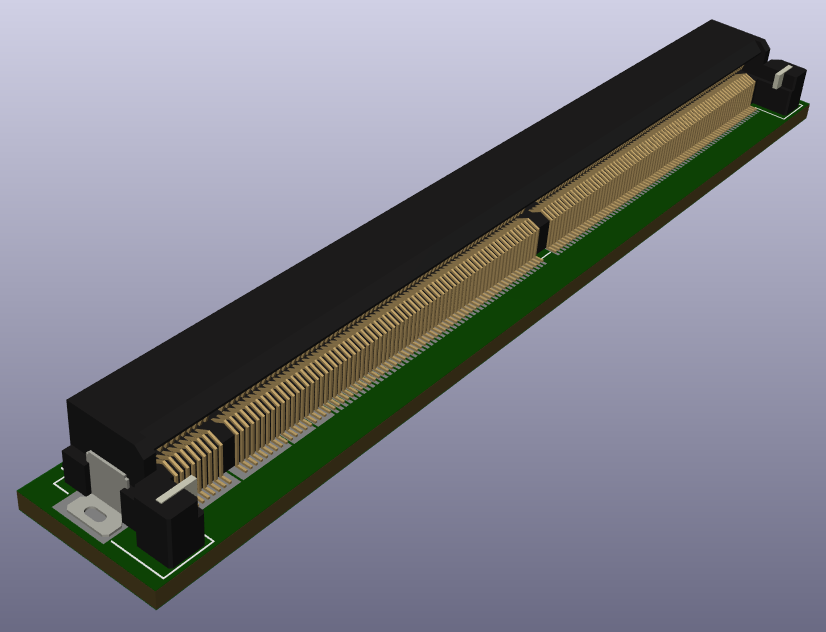

A screenshot of the model(s) aligned with KiCad footprints is very useful - DONE

Was the 3D model(s) created in a mechanical modelling program? - DONE

Source files (or scripts) have been contributed - DONE

Step model submitted in 1:1 scale

WRL model submitted in 1:2.54 scale

3D model alignment checked against KiCad footprint

WRL model uses correct material properties

Geometry check performed against mechanical models

A screenshot of the model(s) aligned with KiCad footprints is very useful - DONE Was the 3D model(s) created in a mechanical modelling program? - DONE Source files (or scripts) have been contributed - DONE Step model submitted in 1:1 scale WRL model submitted in 1:2.54 scale 3D model alignment checked against KiCad footprint WRL model uses correct material properties Geometry check performed against mechanical models
